WO2023117347 - LAYOUT FOR ELECTRICAL DRIVE UNIT
National phase entry:
Publication Number
WO/2023/117347
Publication Date
29.06.2023
International Application No.
PCT/EP2022/083892
International Filing Date
30.11.2022
Title **
[English]
LAYOUT FOR ELECTRICAL DRIVE UNIT
[French]
AGENCEMENT POUR UNITÉ DE COMMANDE ÉLECTRIQUE
Applicants **
BAYERISCHE MOTOREN WERKE AKTIENGESELLSCHAFT
Inventors
MEINGASSNER, Georg Johann
MAINUSCH, Michael
HOMBAUER, Michael
Priority Data
17/645,817
23.12.2021
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2171 | |
| EPO | Filing, Examination, Granting | 10656 | |
| Japan | Filing, Examination, Granting | 2307 | |
| South Korea | Filing, Examination, Granting | 2380 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
22,254
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

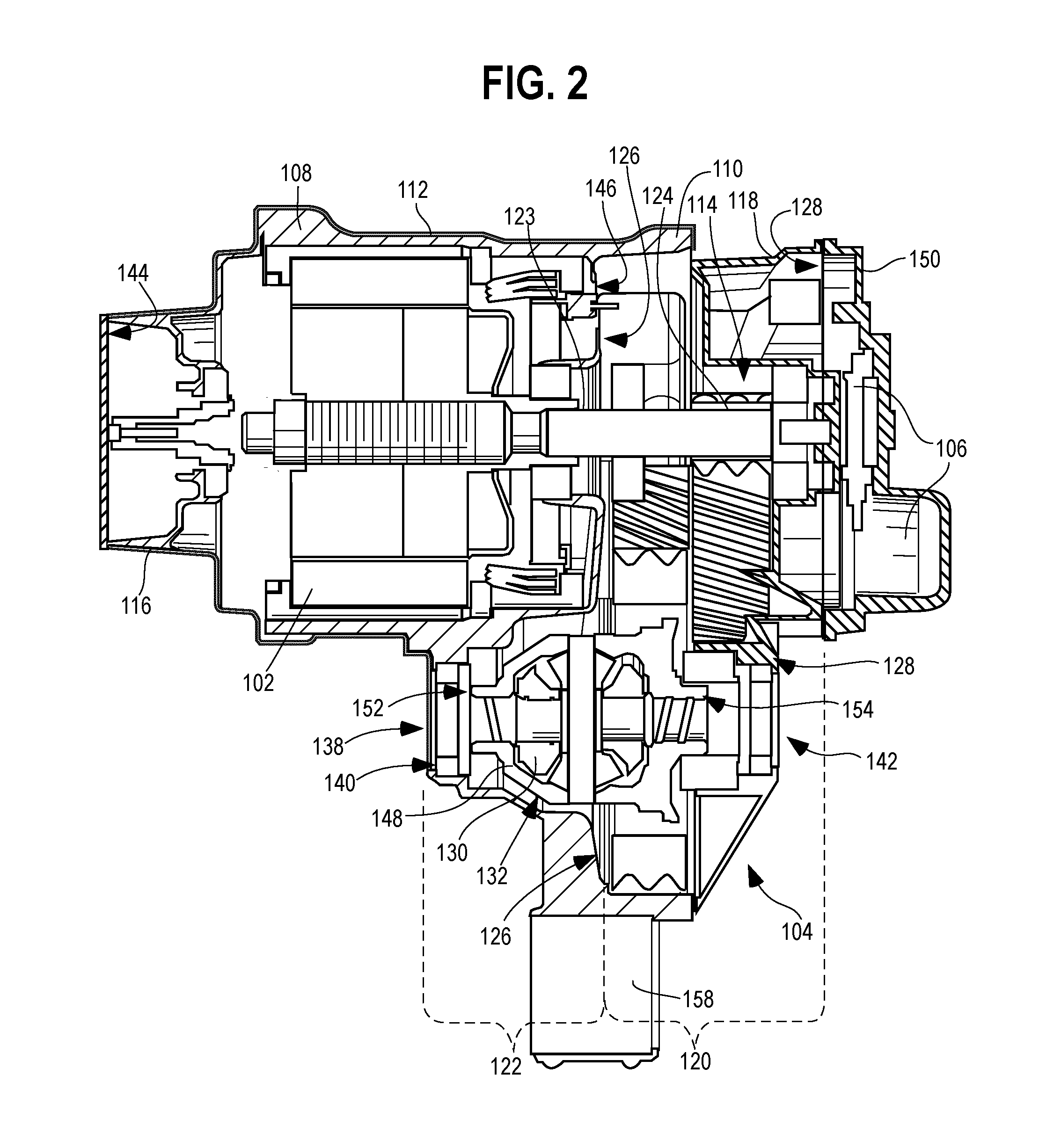

An electrical drive unit includes an electric motor having a first transverse end and an opposite second transverse end, and a gearbox including a main gearbox portion and a transverse projection portion. The motor is attached to the gearbox at the second transverse end of the motor and is located on a first transverse side of the main gearbox portion in a first transverse direction. The transverse projection portion of the gearbox includes at least one gear of the gearbox and extends from the first transverse side of the main gearbox portion such that the transverse projection portion and at least a portion of the at least one gear extends in the first transverse direction beyond the second transverse end of the motor.[French]
