WO2025209633 - A METHOD FOR HANDLING A WIND TURBINE ROTOR BLADE
National phase entry is expected:
Publication Number
WO/2025/209633
Publication Date
09.10.2025
International Application No.
PCT/DK2025/050036
International Filing Date
17.03.2025
Title **
[English]
A METHOD FOR HANDLING A WIND TURBINE ROTOR BLADE
[French]
PROCÉDÉ DE MANIPULATION D'UNE PALE DE ROTOR D'ÉOLIENNE
Applicants **
VESTAS WIND SYSTEMS A/S
Inventors
ØSTLI, Bjørn
ANDERSEN, Jes Grøn
JOHANSEN, Rasmus Sanderhoff
Priority Data
PA202430151
05.04.2024
DK
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2026 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 2154 | |
| South Korea | Filing, Examination, Granting | 2066 | |
| USA | Filing, Examination, Granting | 5340 |
Total:
19,693
Contact Us
Abstract[English]

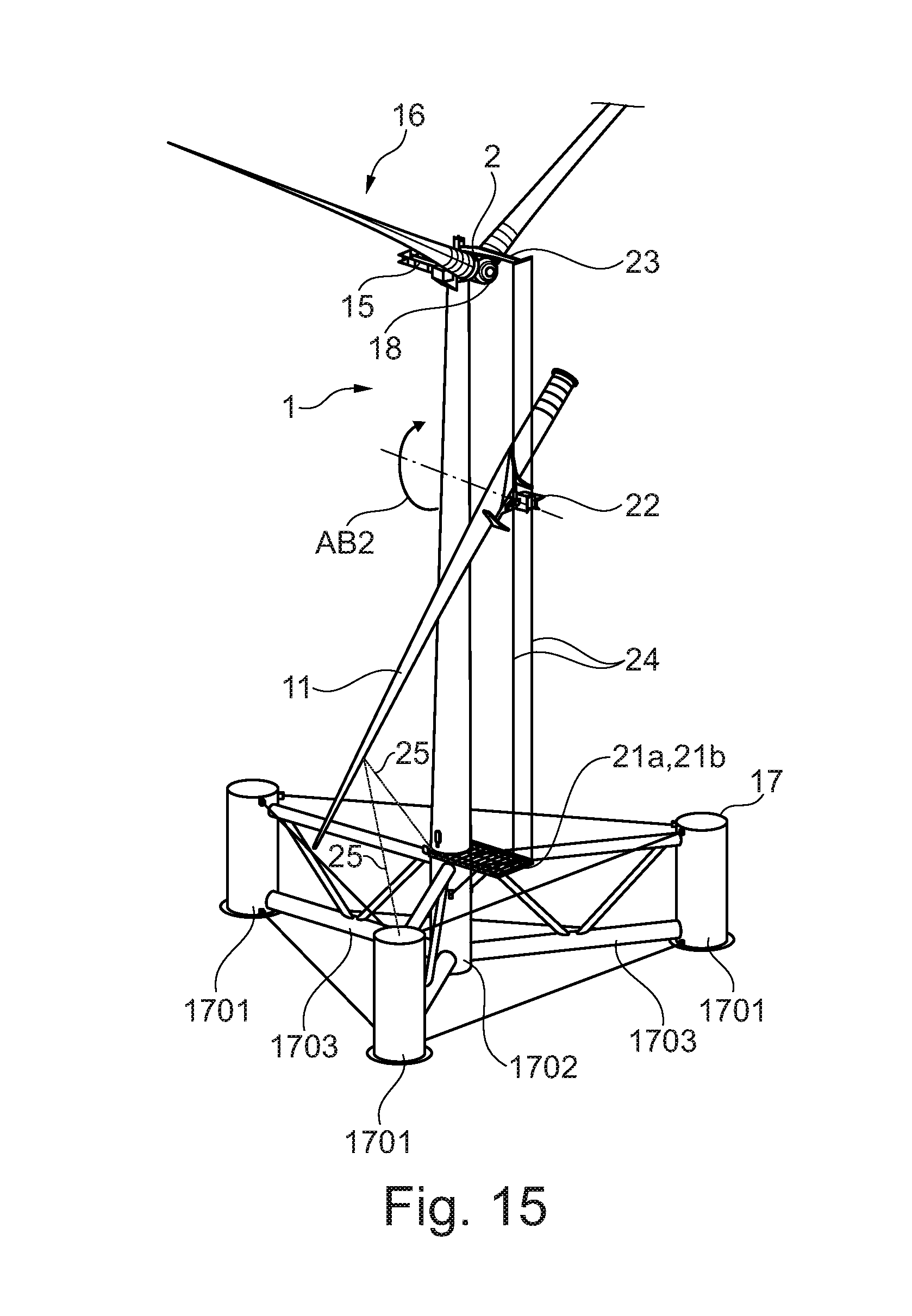

The invention provides a method for handling a wind turbine rotor blade (11) of a horizontal axis wind turbine (1), which wind turbine comprises a tower (14) supported by and fixed to a foundation (17), a nacelle (15) on the tower, and a rotor hub (18) rotatably mounted to the nacelle, the method comprising - fixedly mounting a blade supporting device (21a, 21b) to the foundation and/or to the wind turbine, - lifting the blade to the hub, or lowering the blade from the hub, and - positioning the blade on the blade supporting device (21a, 21b) so as to be supported by the blade supporting device, before the blade is lifted to the hub, or upon lowering the blade from the hub.[French]
L'invention concerne un procédé de manipulation d'une pale de rotor d'éolienne (11) d'une éolienne à axe horizontal (1) ; ladite éolienne comprend une tour (14) supportée par et fixée à une fondation (17), une nacelle (15) sur la tour, et un moyeu de rotor (18) monté rotatif sur la nacelle ; le procédé comprend le montage fixe d'un dispositif de support de pale (21a, 21b) sur la fondation et/ou sur l'éolienne, le levage de la pale vers le moyeu, ou l'abaissement de la pale à partir du moyeu, et le positionnement de la pale sur le dispositif de support de pale (21a, 21b) de manière à être supportée par le dispositif de support de pale, avant que la pale ne soit soulevée au moyeu, ou lors de l'abaissement de la pale à partir du moyeu.
