WO2025228484 - SYSTEM, UM SOLARPANEELE EINEM SONNENSTAND NACHZUFÜHREN, UND VERFAHREN ZUR HERSTELLUNG DES SYSTEMS

National phase entry is expected:
Publication Number WO/2025/228484
Publication Date 06.11.2025
International Application No. PCT/DE2025/100369
International Filing Date 10.04.2025
Title **
[German] SYSTEM, UM SOLARPANEELE EINEM SONNENSTAND NACHZUFÜHREN, UND VERFAHREN ZUR HERSTELLUNG DES SYSTEMS
[English] SYSTEM FOR TRACKING SOLAR PANELS TO A POSITION OF THE SUN, AND METHOD FOR PRODUCING THE SYSTEM
[French] SYSTÈME DE SUIVI PAR DES PANNEAUX SOLAIRES D'UNE POSITION DU SOLEIL, ET PROCÉDÉ DE PRODUCTION DU SYSTÈME
Applicants **
STABILUS GMBH
ACE STOSSDÄMPFER GMBH
Inventors
MÜLLER, Markus
BACKHAUSEN, Niklas
Priority Data
102024112371.0   02.05.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
译文

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1967
EPO Filing, Examination, Granting8126
Japan Filing, Examination, Granting2093
South Korea Filing, Examination, Granting1945
USA Filing, Examination, Granting4740
MasterCard Visa
Total: 18,871
Contact Us

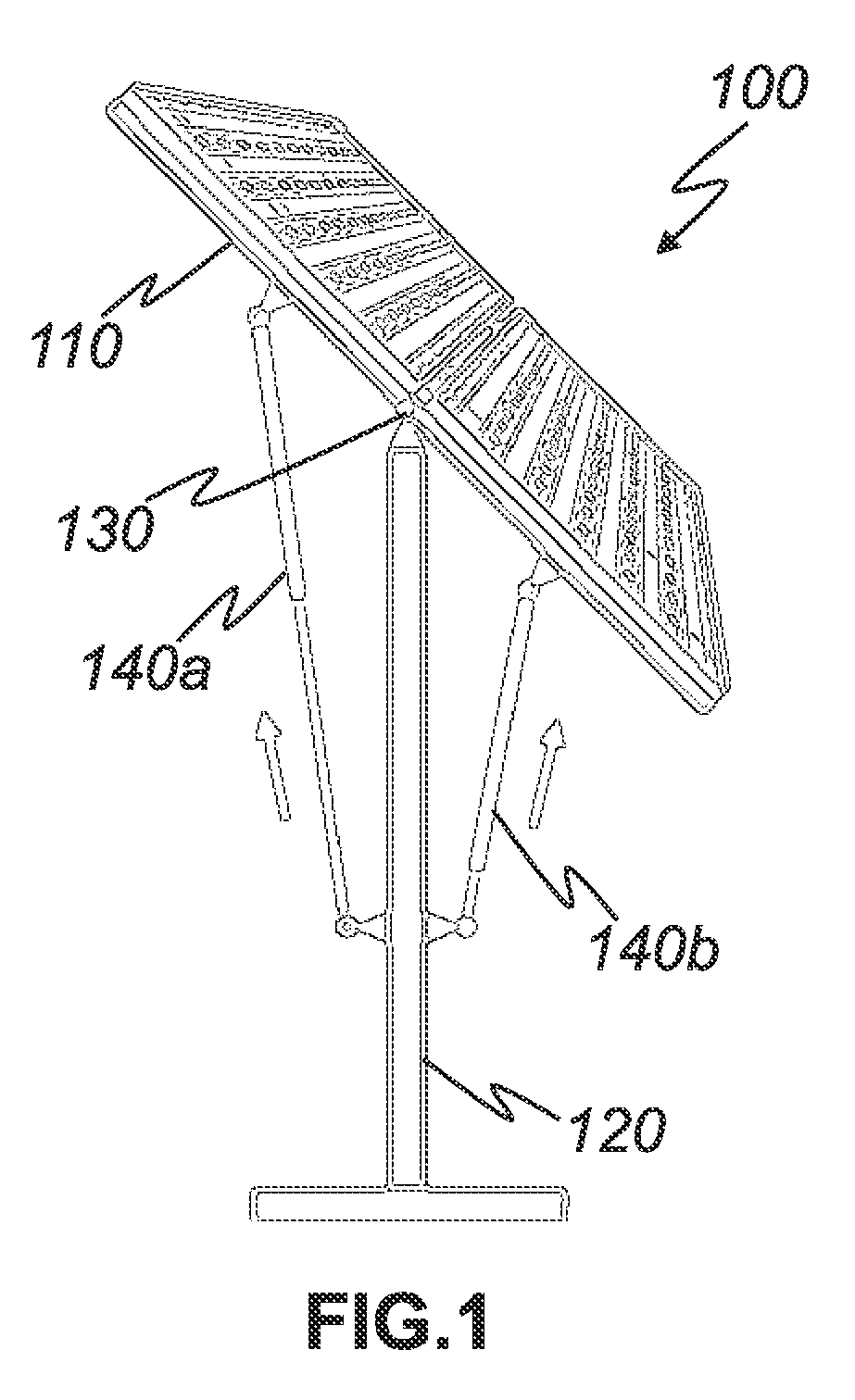

Abstract[German] Die Erfindung betrifft ein System (100), um Solarpaneele einem Sonnenstand nachzuführen, das System (100) umfassend eine Auflagefläche (110) für die Solarpaneele; eine Stütze (120) zur Unterstützung der Auflagefläche (110); eine Drehachse (130), wobei die Auflagefläche (110) an der Stütze (120) um die Drehachse (130) drehbar gelagert ist; und zwei entlang jeweils einer Hubachse linear wirkende, hydraulische Dämpfer (140) zur Dämpfung einer Drehung der Auflagefläche (110) relativ zu der Stütze (120) um die Drehachse (130), wobei die Dämpfer (140) so mit der Auflagefläche (110) und mit der Stütze (120) verbunden sind, dass bei einer Drehung der Auflagefläche (110) in einer ersten Drehrichtung ein erster Dämpfer (140a) der Dämpfer (140) entlang seiner Hubachse komprimiert wird, während ein zweiter Dämpfer (140b) der Dämpfer (140) entlang seiner Hubachse elongiert wird. Die Dämpfer (140) dämpfen eine Kompression der Dämpfer (140) entlang ihrer Hubachse mit einer Druck-Dämpfkraft und eine Elongation der Dämpfer (140) entlang ihrer Hubachse mit einer Zug-Dämpfkraft, wobei die Druck-Dämpfkraft gegenüber der Zug-Dämpfkraft vernachlässigbar klein ist. Die Erfindung betrifft ferner ein Verfahren zur Herstellung des Systems (100).[English] The invention relates to a system (100) for tracking solar panels with respect to the position of the sun, the system (100) comprising a support surface (110) for the solar panels; a column (120) for supporting the support surface (110); an axis of rotation (130), wherein the support surface (110) is mounted on the column (120) so as to be rotatable about the axis of rotation (130); and two hydraulic dampers (140), each acting linearly along a stroke axis, for damping a rotation of the support surface (110) relative to the column (120) about the axis of rotation (130), wherein the dampers (140) are connected to the support surface (110) and to the column (120) such that, when the support surface (110) rotates in a first direction of rotation, a first damper (140a) of the dampers (140) is compressed along the stroke axis thereof, while a second damper (140b) of the dampers (140) is elongated along its stroke axis. The dampers (140) damp a compression of the dampers (140) along their stroke axis with a compressive damping force and an elongation of the dampers (140) along the stroke axis thereof with a tensile damping force, wherein the compressive damping force is negligibly small compared to the tensile damping force. The invention also relates to a method for producing the system (100).[French] L'invention concerne un système (100) de suivi par des panneaux solaires en fonction de la position du soleil, le système (100) comprenant une surface de support (110) des panneaux solaires; une colonne (120) pour supporter la surface de support (110); un axe de rotation (130), la surface de support (110) étant montée sur la colonne (120) de manière à pouvoir tourner autour de l'axe de rotation (130); et deux amortisseurs hydrauliques (140), chacun agissant linéairement le long d'un axe de course, pour amortir une rotation de la surface de support (110) par rapport à la colonne (120) autour de l'axe de rotation (130), les amortisseurs (140) étant reliés à la surface de support (110) et à la colonne (120) de telle sorte que, lorsque la surface de support (110) tourne dans un premier sens de rotation, le premier amortisseur (140a) des amortisseurs (140) est comprimé le long de son axe de course, tandis que le second amortisseur (140b) des amortisseurs (140) est allongé le long de son axe de course. Les amortisseurs (140) amortissent une compression des amortisseurs (140) le long de leur axe de course avec une force d'amortissement par compression et un allongement des amortisseurs (140) le long de son axe de course avec une force d'amortissement par traction, la force d'amortissement par compression étant négligeable par rapport à la force d'amortissement par traction. L'invention concerne également un procédé de fabrication du système (100).
