WO2025180579 - NOCKENWELLENVERSTELLER
National phase entry is expected:
Publication Number
WO/2025/180579
Publication Date
04.09.2025
International Application No.
PCT/DE2025/100223
International Filing Date
27.02.2025
Title **
[German]
NOCKENWELLENVERSTELLER
[English]
CAMSHAFT ADJUSTER
[French]
AJUSTEUR D'ARBRE À CAMES
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
NIESWANDT, Manuel
KARIC, Branimir
PUETZ, Boris
FORTL, Jan
SIEBERG, Peter
Priority Data
102024105482.4
27.02.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1880 | |
| EPO | Filing, Examination, Granting | 8126 | |
| Japan | Filing, Examination, Granting | 1846 | |
| South Korea | Filing, Examination, Granting | 1443 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,035
Contact Us
Abstract[German]
Die Erfindung betriff einen Nockenwellenversteller (2) zur Relativdrehung zwischen einer Nockenwelle (7) und einer Kurbelwelle, mit einem Stator und einem Rotor (5), die zwei gegensätzlich wirkende Arbeitskammern ausbilden, einem Hydraulikventil (15), durch das die Arbeitskammern mit Hydraulikmitteldruck zur Relativdrehung beaufschlagbar sind, einem im Nockenwellenversteller (2) angeordneten Volumenspeicher (4), welcher Leckageverluste des Hydraulikmittels sammelt, und einer Hydraulikmittelleitung (8), die dem Volumenspeicher (4) druckbeaufschlagtes Hydraulikmittel von einem druckmittelbeaufschlagten Hydraulikmittelanschluss (6) über die Mantelfläche (14) des Hydraulikventils (15) zuführt.[English]

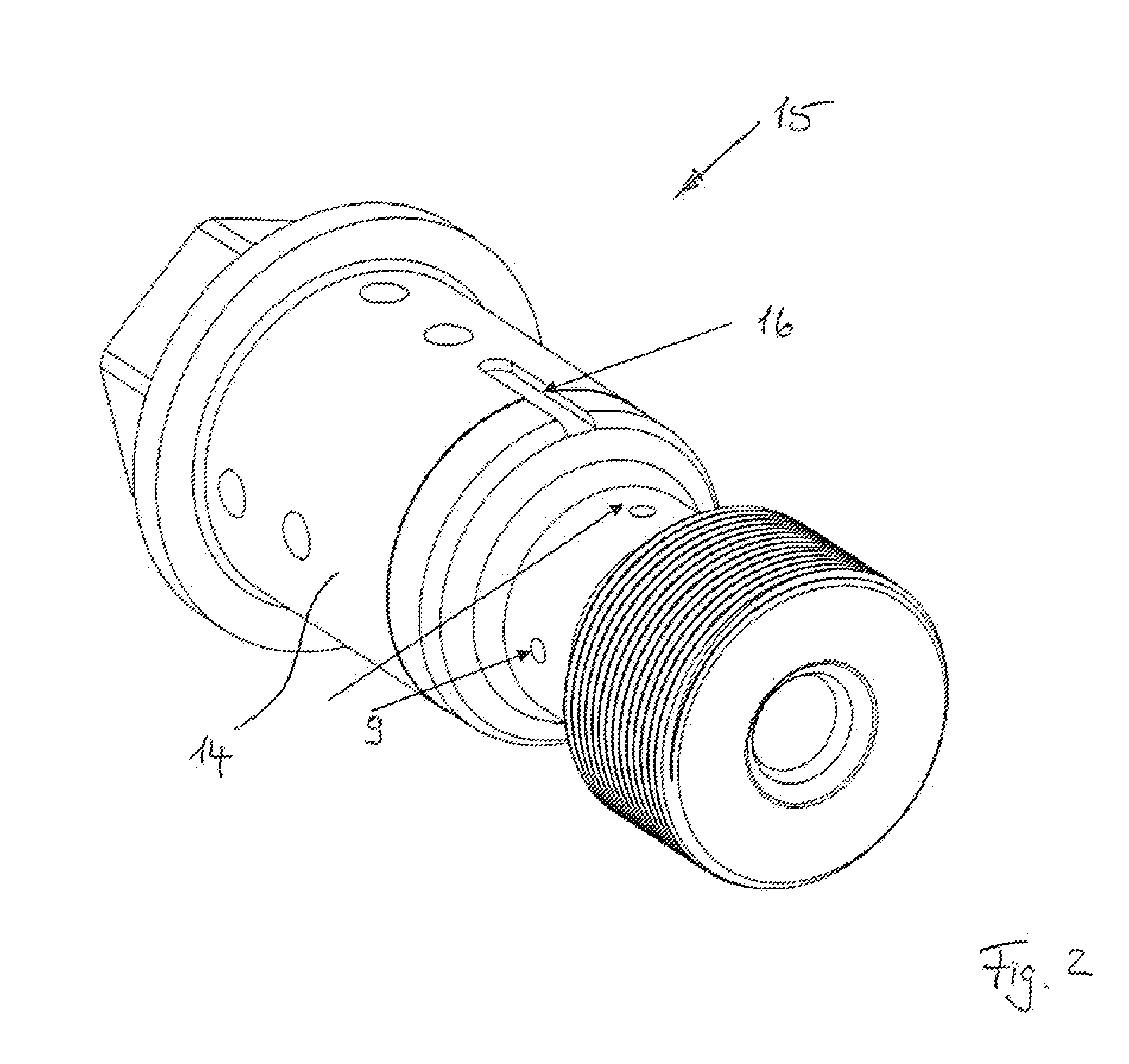

The invention relates to a camshaft adjuster (2) for relative rotation between a camshaft (7) and a crankshaft, the camshaft adjuster comprising: a stator and a rotor (5) which form two working chambers acting in opposite directions; a hydraulic valve (15) by means of which hydraulic medium pressure can be applied to the working chambers to enable relative rotation; a volume accumulator (4) which is arranged in the camshaft adjuster (2) and collects leakage losses of the hydraulic medium; and a hydraulic medium line (8) which supplies pressurised hydraulic medium to the volume accumulator (4) from a pressurised hydraulic medium connection (6) via the external surface (14) of the hydraulic valve (15).[French]
L'invention concerne un ajusteur d'arbre à cames (2) pour une rotation relative entre un arbre à cames (7) et un vilebrequin, l'ajusteur d'arbre à cames comprenant : un stator et un rotor (5) qui forment deux chambres de travail agissant dans des sens opposés ; une soupape hydraulique (15) au moyen de laquelle une pression de milieu hydraulique peut être appliquée aux chambres de travail pour permettre une rotation relative ; un accumulateur de volume (4) qui est placé dans l'ajusteur d'arbre à cames (2) et collecte des pertes par fuite du milieu hydraulique ; et une conduite de milieu hydraulique (8) qui fournit un milieu hydraulique sous pression à l'accumulateur de volume (4) à partir d'une liaison de milieu hydraulique sous pression (6) par l'intermédiaire de la surface externe (14) de la soupape hydraulique (15).
