WO2025176241 - STÖSSEL MIT EINER NOCKENANLAUFROLLE FÜR EINE KRAFTSTOFFHOCHDRUCKPUMPE EINER SCHWERLASTBRENNKRAFTMASCHINE
National phase entry is expected:
Publication Number
WO/2025/176241
Publication Date
28.08.2025
International Application No.
PCT/DE2025/100090
International Filing Date
22.01.2025
Title **
[German]
STÖSSEL MIT EINER NOCKENANLAUFROLLE FÜR EINE KRAFTSTOFFHOCHDRUCKPUMPE EINER SCHWERLASTBRENNKRAFTMASCHINE
[English]
TAPPET COMPRISING A CAM FOLLOWER ROLLER FOR A HIGH-PRESSURE FUEL PUMP OF A HEAVY-DUTY INTERNAL COMBUSTION ENGINE
[French]
POUSSOIR COMPRENANT UN ROULEAU SUIVEUR DE CAME POUR UNE POMPE À CARBURANT HAUTE PRESSION D'UN MOTEUR À COMBUSTION INTERNE DE TYPE POIDS LOURD
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
JUNKER, Marco
GEYER, Norbert
Priority Data
102024104993.6
22.02.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1882 | |
| EPO | Filing, Examination, Granting | 8107 | |
| Japan | Filing, Examination, Granting | 1845 | |
| South Korea | Filing, Examination, Granting | 1441 | |
| USA | Filing, Examination, Granting | 4740 |

Total:
18,015
Contact Us
Abstract[German]

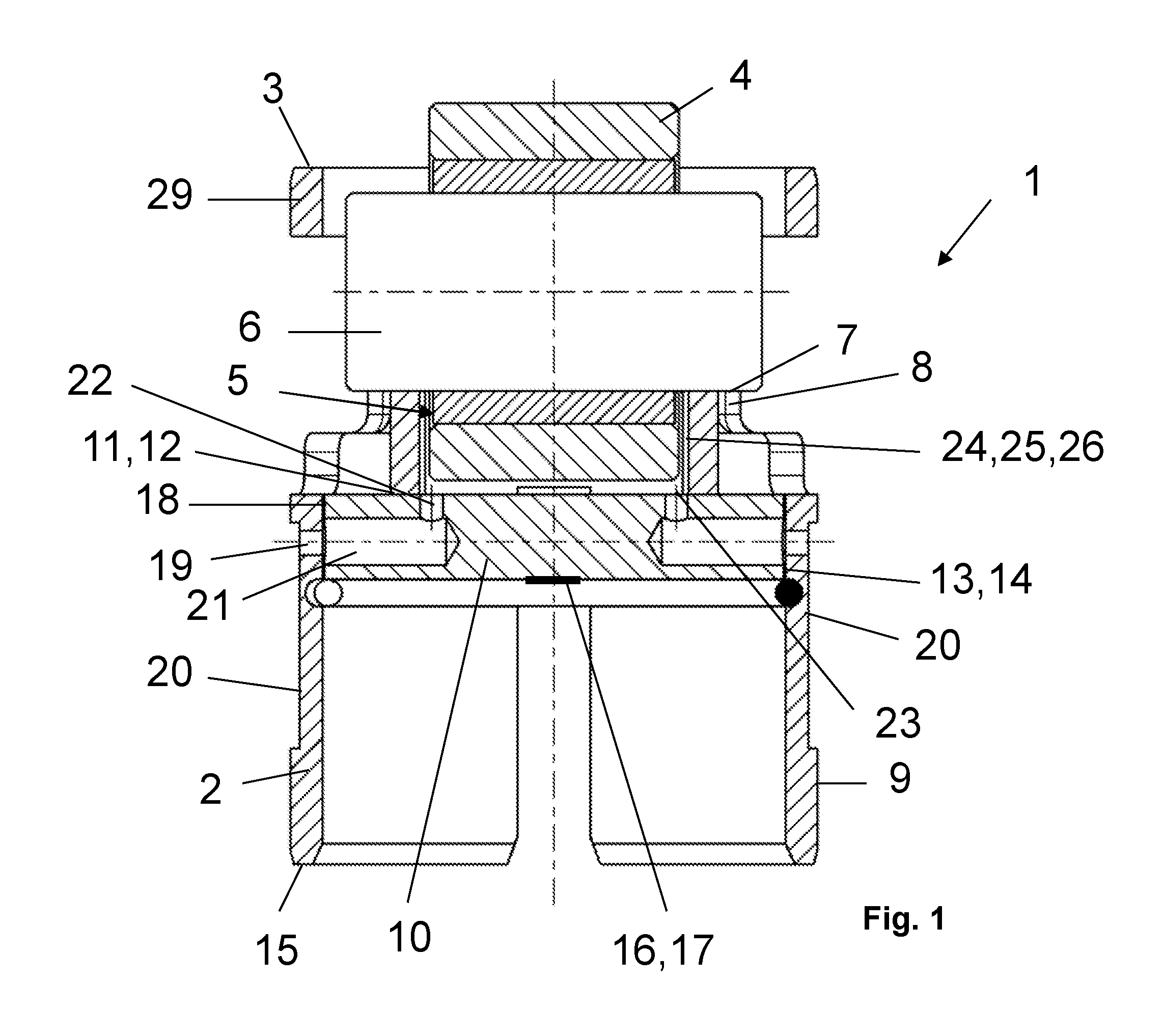

Vorgeschlagen ist ein Stößel (1) für eine Kraftstoffhochdruckpumpe einer Schwerlastbrennkraftmaschine, mit einem Gehäuse (2), das bei seiner oberen Ringstirn (3) eine Nockenanlaufrolle (4) aufnimmt, welche auf einem Bolzen (6) läuft, der in Aufnahmen (7) von sich gegenüberliegenden Flachs (8) des Gehäuses (2) sitzt, wobei das Gehäuse (2) unterhalb der Flachs (8) von einem separaten Brückenstück (10) durchragt ist, das einerseits mit seiner der oberen Ringstirn (3) des Gehäuses (2) zugewandten Stirn (11) an Unterbalken (12) der Flachs (8) in Kontakt ist und andererseits mit seiner der unteren Ringstirn (15) des Gehäuses (2) zugewandten Stirn (16) eine Halterung aus dem Gehäuse (2) heraus durch einen Sicherungsring (31) erfährt, wobei das Brückenstück (10) über zwei sich gegenüberliegende Ringsegmente (18) am Innenmantel (14) des Gehäuses (2) im Umfangsbereich bei den Flachs (8) anliegt, wobei das Gehäuse (2) bei wenigstens einem der Ringsegmente (18) von einem Durchtritt (19) für Schmieröl geschnitten ist, der von einem Reservoir (20) am Außenmantel (9) des Gehäuses (2) ausgeht und an eine Radialbohrung (21) im Brückenstück (10) mündet, die stromabwärts von zumindest einer Axialbohrung (22) im Brückenstück (10) geschnitten ist, welche einen Austritt (23) an der oberen Stirn (11 ) des Brückenstücks (10) im Längenabschnitt zwischen den Flachs (8) des Gehäuses (2) hat, wobei, in Axialrichtung der Nockenanlaufrolle (4) gesehen, der Austritt (23) bei einem Spalt (24) zwischen der Nockenanlaufrolle (4) und einer Innenwand (25) des respektiven Flachs (8) liegt, in welcher Innenwand (25) ein Steigkanal (26) für das Schmieröl zu dessen Weiterleitung in Richtung zur Lagerung (5) verläuft.[English]
