WO2025162528 - BREMSEINHEIT FÜR EIN FAHRZEUG MIT ELEKTRISCHEM ANTRIEB
National phase entry is expected:
Publication Number
WO/2025/162528
Publication Date
07.08.2025
International Application No.
PCT/DE2025/100059
International Filing Date
15.01.2025
Title **
[German]
BREMSEINHEIT FÜR EIN FAHRZEUG MIT ELEKTRISCHEM ANTRIEB
[English]
BRAKE UNIT FOR A VEHICLE WITH AN ELECTRIC DRIVE
[French]
UNITÉ DE FREINAGE POUR VÉHICULE À ENTRAÎNEMENT ÉLECTRIQUE
Applicants **
SCHAEFFLER TECHNOLOGIES AG & CO. KG
Inventors
VETTER, Julian
HEPPERLE, Walter
Priority Data
102024103012.7
02.02.2024
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1880 | |
| EPO | Filing, Examination, Granting | 8126 | |
| Japan | Filing, Examination, Granting | 2001 | |
| South Korea | Filing, Examination, Granting | 1757 | |
| USA | Filing, Examination, Granting | 4740 |

Total:
18,504
Contact Us
Abstract[German]
Die Erfindung betrifft eine Bremseinheit (1 ) für ein Kraftfahrzeug (1 ), aufweisend ein zylindrisches Gehäuse (2), das mit einem Fluid befüllbar ist und in dem mehrere erste Lamellen (4) von einer Umfangsseite (2a) des Gehäuses (2) aus in Bezug auf eine Längsachse L des Gehäuses (2) radial nach innen vorstehen, wobei in dem Gehäuse (2) mehrere zweite Lamellen (3) in Bezug auf die Längsachse L relativ zu den ersten Lamellen (4) axial beweglich angeordnet sind. Erfindungsgemäß ist eine zentrale Welle (6) entlang der Längsachse L durch das Gehäuse (2) geführt und drehfest an diesem befestigt, wobei die zweiten Lamellen (3) radial nach außen vorstehend auf einer Hohlwelle (5) angeordnet und drehfest mit dieser verbunden sind, welche die zentrale Welle (6) konzentrisch umgibt und welche mit der zentralen Welle (6) drehfest koppelbar ist.[English]

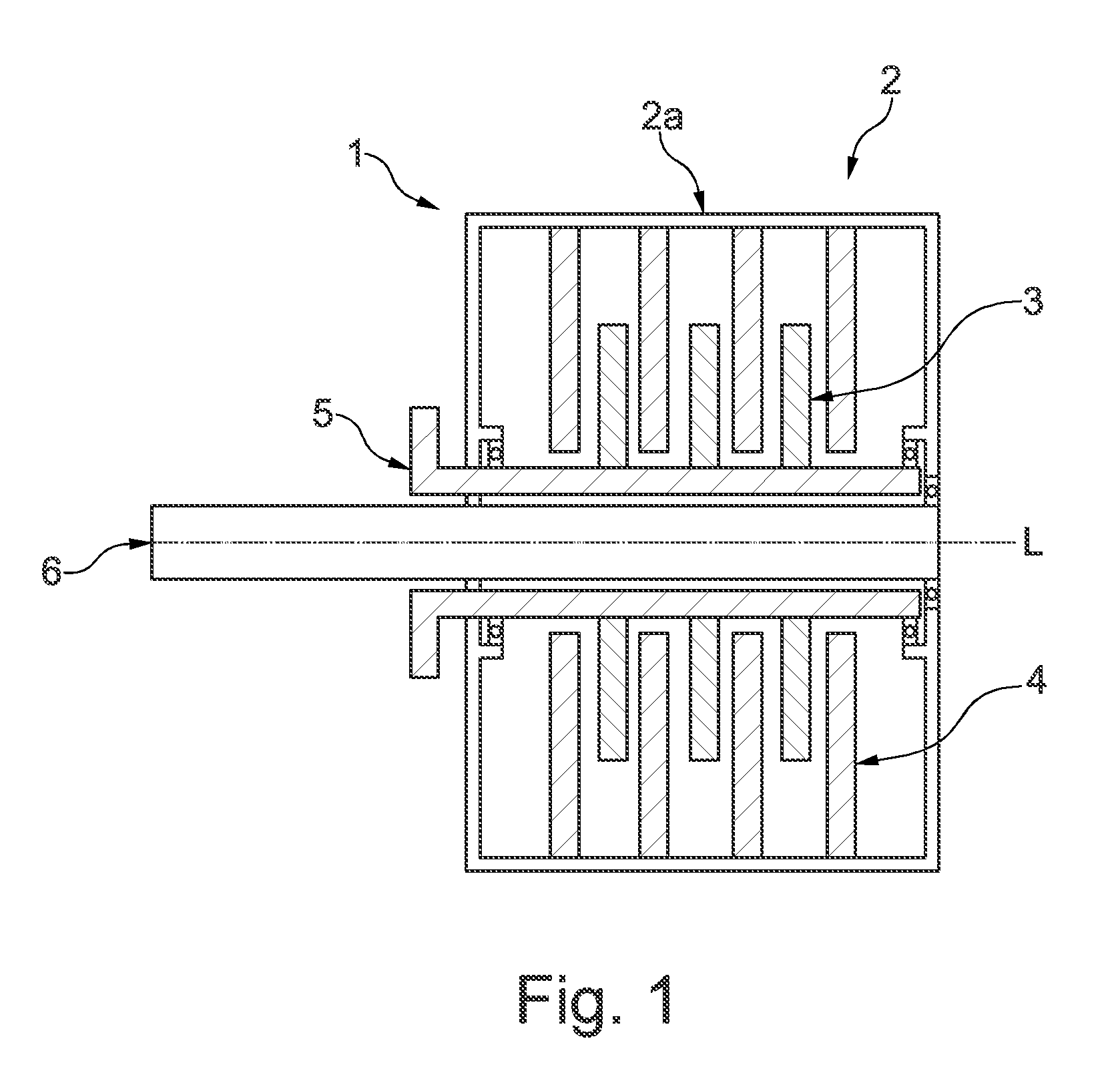

The invention relates to a brake unit (1) for a motor vehicle (1), having a cylindrical housing (2) which can be filled with a fluid and in which a plurality of first plates (4) are arranged so as to protrude radially inward from the circumferential face (2a) of the housing (2) with respect to the longitudinal axis L of the housing (2), wherein a plurality of second plates (3) are mounted in the housing (2) so as to be axially movable relative to the first plates (4) with respect to the longitudinal axis L. According to the invention, a central shaft (6) is guided along the longitudinal axis L through the housing (2) and is secured thereto for conjoint rotation, and the second plates (3) are arranged on a hollow shaft (5) so as to protrude radially outward and are connected thereto for conjoint rotation, said hollow shaft concentrically surrounding the central shaft (6) and being coupleable to the central shaft (6) for conjoint rotation.[French]
La présente invention concerne une unité de freinage (1) pour véhicule automobile (1), comportant un logement cylindrique (2) qui peut être rempli d'un fluide et dans lequel une pluralité de premières plaques (4) sont agencées de manière à faire saillie radialement vers l'intérieur à partir de la face circonférentielle (2a) du logement (2) par rapport à l'axe longitudinal L du logement (2), une pluralité de secondes plaques (3) étant montées dans le logement (2) de manière à être mobiles axialement par rapport aux premières plaques (4) par rapport à l'axe longitudinal L. Selon la présente invention, un arbre central (6) est guidé le long de l'axe longitudinal L à travers le logement (2) et est fixé à celui-ci pour une rotation conjointe, et les secondes plaques (3) sont agencées sur un arbre creux (5) de manière à faire saillie radialement vers l'extérieur et sont raccordées à celui-ci pour une rotation conjointe, ledit arbre creux entourant de manière concentrique l'arbre central (6) et pouvant être accouplé à l'arbre central (6) pour une rotation conjointe.
