WO2025217747 - OPTICAL SYSTEM AND ELECTRONIC DEVICE
National phase entry is expected:
Publication Number
WO/2025/217747
Publication Date
23.10.2025
International Application No.
PCT/CN2024/087663
International Filing Date
15.04.2024
Title **
[English]
OPTICAL SYSTEM AND ELECTRONIC DEVICE
[French]
SYSTÈME OPTIQUE ET DISPOSITIF ÉLECTRONIQUE
Applicants **
HUAWEI TECHNOLOGIES CO., LTD.
Inventors
NIHEI, Yasuhide
MATSUI, Takumi
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1897 | |
| EPO | Filing, Examination, Granting | 12896 | |
| Japan | Filing, Examination, Granting | 2186 | |
| South Korea | Filing, Examination, Granting | 2112 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
23,831
Contact Us
Abstract[English]

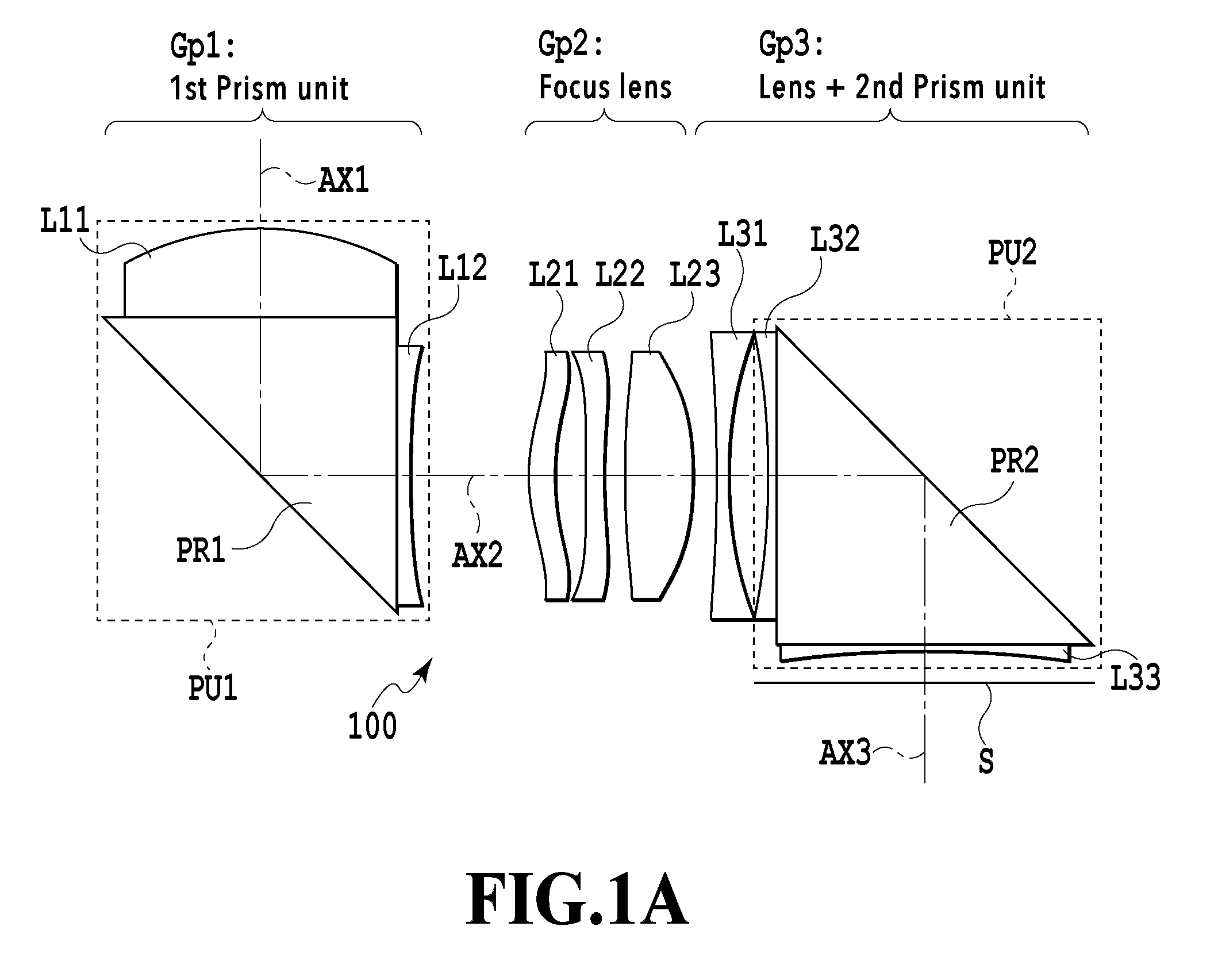

Provided is an optical system that can simultaneously realize miniaturization of a camera using a large image sensor and an autofocus function that realizes a macro function, and an electronic device having them. The optical system includes the first reflecting member provided on the object side and the second reflecting member provided on the imaging surface side. Each of the first reflecting member and the second reflecting member have lens shapes having refractive power on an incident surface and an emission surface. In one embodiment, the optical system includes the first lens group including a first reflecting member and having positive refractive power, the second lens group having the positive refractive power, and the third lens group including a second reflecting member and having negative refractive power.[French]
