WO2024130750 - COHERENT MULTI-BEAM OPTICAL PHASED ARRAY FOR RF BEAMFORMING
National phase entry is expected:
Publication Number
WO/2024/130750
Publication Date
27.06.2024
International Application No.
PCT/CN2022/141730
International Filing Date
24.12.2022
Title **
[English]
COHERENT MULTI-BEAM OPTICAL PHASED ARRAY FOR RF BEAMFORMING
[French]
RÉSEAU À COMMANDE DE PHASE OPTIQUE À FAISCEAUX MULTIPLES COHÉRENT POUR FORMATION DE FAISCEAU RF
Applicants **
HUAWEI TECHNOLOGIES CO., LTD.
Inventors
NICHOLS, Mitchell
ESHAGHI, Armaghan
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| 译文 |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1821 | |
| EPO | Filing, Examination, Granting | 14643 | |
| Japan | Filing, Examination, Granting | 2340 | |
| South Korea | Filing, Examination, Granting | 2444 | |
| USA | Filing, Examination, Granting | 4940 |
Total:
26,188
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

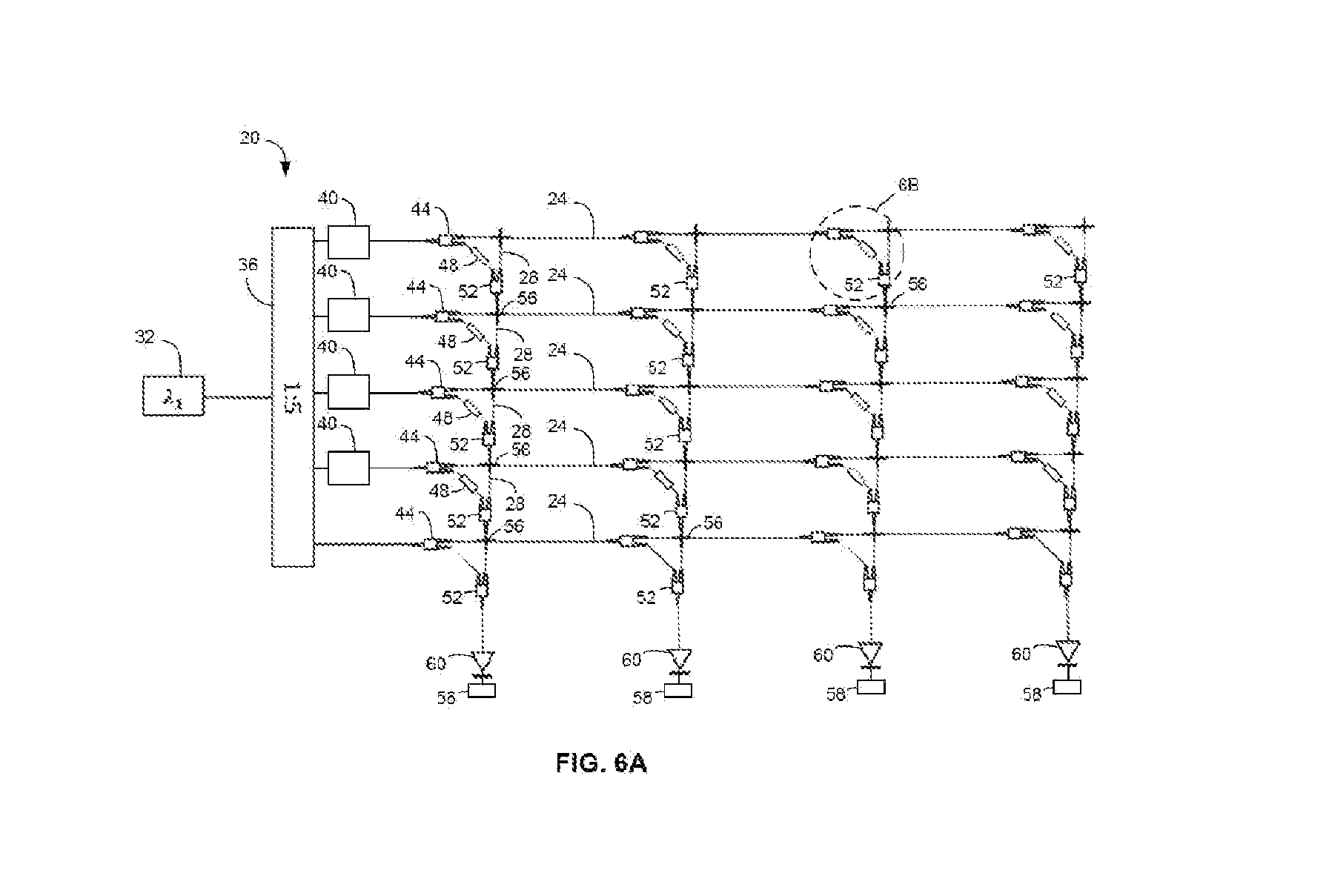

A coherent multi-beam optical phased array for radio-frequency beamforming is provided. The optical phase array includes an optical signal source generating an optical signal, a first set of waveguides connected to the optical signal source and configured to propagate the optical signal, a second set of waveguides, a set of splitters along each of the first set of waveguides configured to split the optical signal, a phase shifter coupled to each of the splitters, each phase shifter being controllable to modify a phase shift of the optical signal, a coupler connected to each of the phase shifters and to one waveguide of the second set of waveguides for introducing the optical signal after shifting, and a photodetector coupled to each waveguide of the second set of waveguides and configured to receive a heterodyne optical signal from the waveguide and generate a corresponding electrical signal.[French]
L'invention concerne un réseau à commande de phase optique à faisceaux multiples cohérent pour la formation de faisceau radiofréquence. Le réseau à commande de phase optique comprend une source de signal optique générant un signal optique, un premier ensemble de guides d'ondes connecté à la source de signal optique et configuré pour propager le signal optique, un second ensemble de guides d'ondes, un ensemble de diviseurs le long de chacun du premier ensemble de guides d'ondes configuré pour diviser le signal optique, un déphaseur couplé à chacun des diviseurs, chaque déphaseur pouvant être commandé pour modifier un déphasage du signal optique, un coupleur connecté à chacun des déphaseurs et à un guide d'ondes du second ensemble de guides d'ondes pour introduire le signal optique après le déphasage, et un photodétecteur couplé à chaque guide d'ondes du second ensemble de guides d'ondes et configuré pour recevoir un signal optique hétérodyne provenant du guide d'ondes et générer un signal électrique correspondant.
