WO2025068885 - SAMPLE ANALYSIS SYSTEM WITH LENS APPARATUS
National phase entry:
Publication Number
WO/2025/068885
Publication Date
03.04.2025
International Application No.
PCT/IB2024/059318
International Filing Date
25.09.2024
Title **
[English]
SAMPLE ANALYSIS SYSTEM WITH LENS APPARATUS
[French]
SYSTÈME DE TRAITEMENT ET D'ANALYSE D'ÉCHANTILLON AGRICOLE ET PROCÉDÉS ASSOCIÉS
Applicants **
PRECISION PLANTING LLC
Inventors
MOLTER, Michael
KAISER, Jesse
Priority Data
63/586,486
29.09.2023
US
63/586,489
29.09.2023
US
63/586,497
29.09.2023
US
63/586,500
29.09.2023
US
63/586,504
29.09.2023
US
63/586,510
29.09.2023
US
63/586,514
29.09.2023
US
63/586,524
29.09.2023
US
63/586,529
29.09.2023
US
63/586,545
29.09.2023
US
63/586,551
29.09.2023
US
63/586,555
29.09.2023
US
63/586,562
29.09.2023
US
63/559,312
29.02.2024
US
63/646,070
13.05.2024
US
63/675,847
26.07.2024
US
63/675,852
26.07.2024
US
63/675,860
26.07.2024
US
63/675,868
26.07.2024
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 4149 | |
| EPO | Filing, Examination, Granting | 13157 | |
| Japan | Filing, Examination, Granting | 1758 | |
| South Korea | Filing, Examination, Granting | 1751 | |
| USA | Filing, Examination, Granting | 5640 |
Total:
26,455
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Abstract[English]

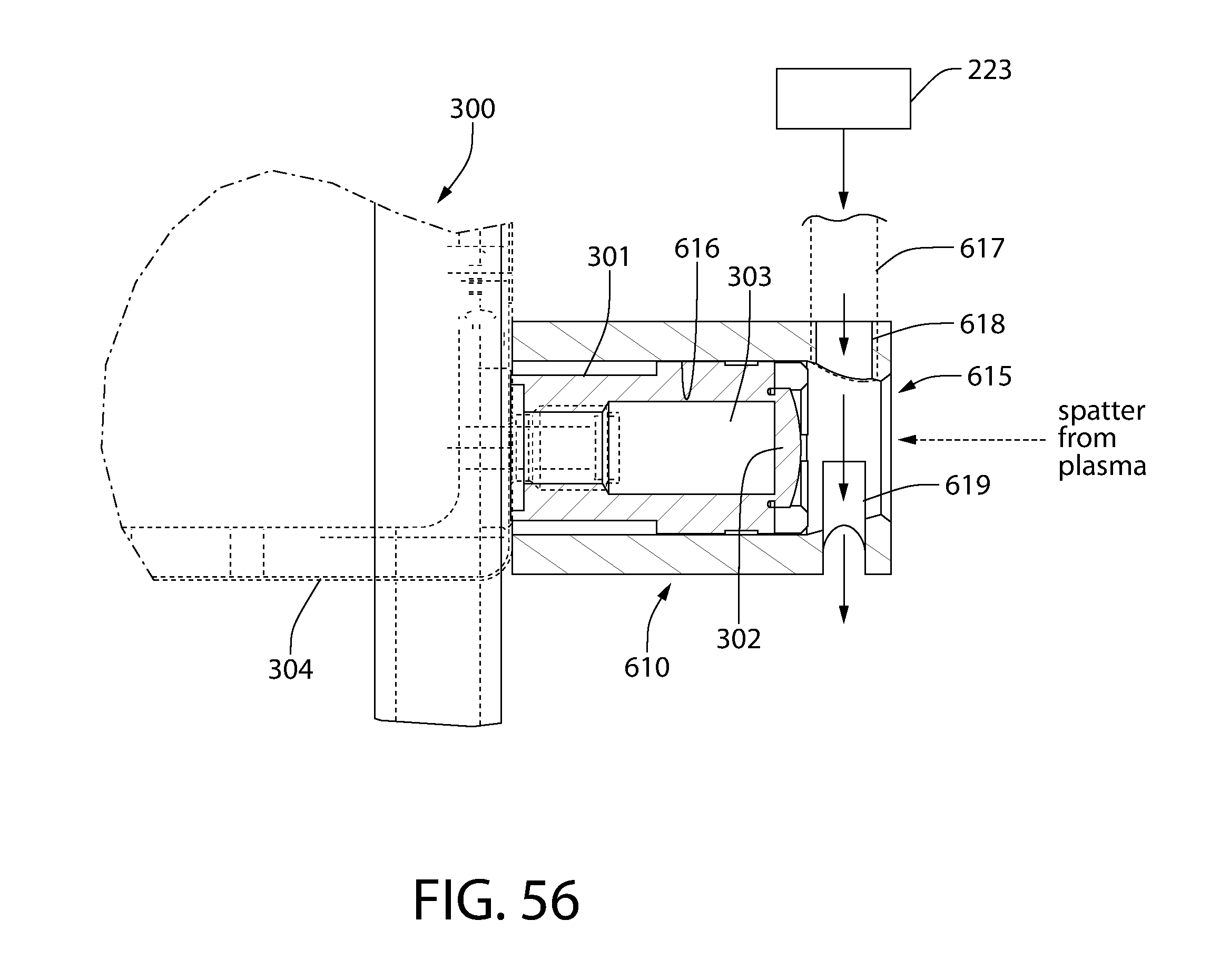

The invention relates to a sample analysis system with lens defogging apparatus. The system comprises a plasma torch device (200) comprising a body defining a plasma chamber (202) and a plasma torch (201) supported by the body in the plasma chamber (202). The plasma torch (201) is electrically coupled to a power source and operable to form a plasma in the plasma chamber (202) from a sample fluid when energized. The system further comprises a spectrometer (300) configured to analyze the plasma to measure an analyte of interest in the sample fluid via light emitted by the plasma. The spectrometer (300) includes a light collection tube (301) in visual communication with the plasma chamber (202), the light collection tube (301) including a proximal end and a distal end equipped with a lens (302) configured to collect light emitted by the plasma. The light collection tube (301) is at least partially inserted into the central passageway (616) of a gas shroud (610), such that the distal end of the light collection tube (301) with the lens (302) is at least partially enclosed by the gas shroud (610). The distal end (612) of the gas shroud (610) includes a gas inlet port (618) fluidly coupled to a pressurized gas source and a gas outlet port (619) and is configured to discharge a stream of gas across an exposed surface of the lens (302) to at least minimize fogging of the lens (302).[French]
Un système d'analyse de traitement d'échantillon agricole comprend un appareil d'analyse comprenant au moins une pompe hybride, un dispositif de torche à plasma et un spectromètre. La pompe hybride comprend une membrane déformable couplée à une cavité de pompage formée dans le corps de pompe. Une pompe à seringue actionne le diaphragme et est intégrée directement dans le corps de pompe à l'intérieur d'un alésage de pompe interne. La pompe à seringue, lorsqu'elle est actionnée, déplace un fluide pilote qui déforme le diaphragme pour pomper un fluide de traitement tel qu'un fluide échantillon vers la torche à plasma où il est allumé pour former un plasma. Le spectromètre capture des données de spectres à partir du plasma et quantifie la concentration d'un analyte d'intérêt agricole dans le fluide échantillon, consistant par exemple en des nutriments végétaux. Des pompes hybrides supplémentaires utilisées pour traiter le fluide échantillon et étalonner le spectromètre peuvent être couplées physiquement et fluidiquement dans un réseau d'écoulement pour former collectivement un boîtier auto-supporté.
