WO2023079526 - ION OPTICAL ELEMENTS AND METHODS OF MANUFACTURING THE SAME
National phase entry is expected:
Publication Number
WO/2023/079526
Publication Date
11.05.2023
International Application No.
PCT/IB2022/060696
International Filing Date
07.11.2022
Title **
[English]
ION OPTICAL ELEMENTS AND METHODS OF MANUFACTURING THE SAME
[French]
ÉLÉMENTS OPTIQUES IONIQUES ET LEURS PROCÉDÉS DE FABRICATION
Applicants **
DH TECHNOLOGIES DEVELOPMENT PTE. LTD.
Inventors
BOOY, Aaron Timothy
HAUFLER, Robert
Priority Data
63/276,801
08.11.2021
US
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2363 | |
| EPO | Filing, Examination, Granting | 11474 | |
| Japan | Filing, Examination, Granting | 2357 | |
| South Korea | Filing, Examination, Granting | 2338 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
23,272
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

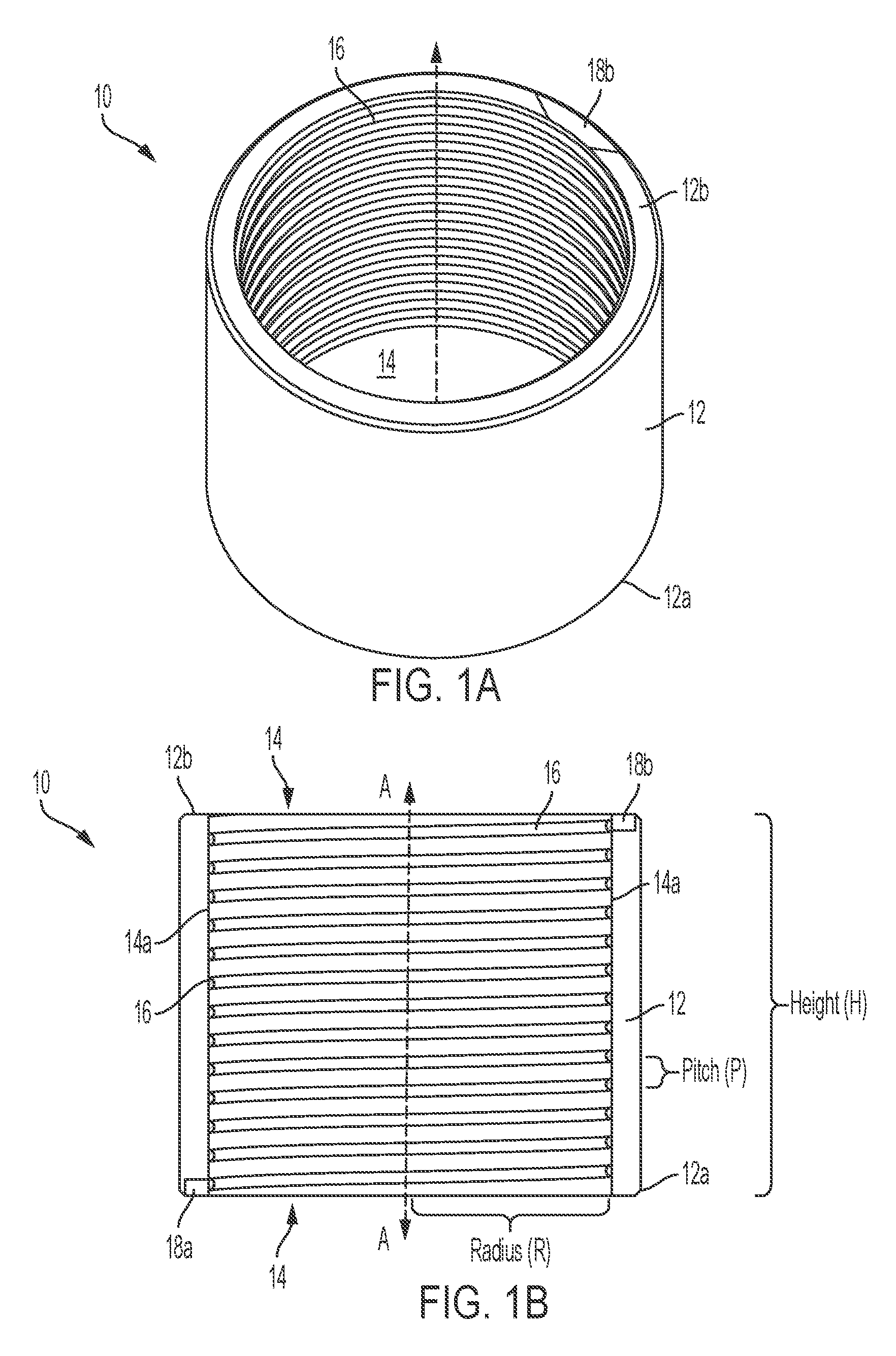

Ion optical elements in accordance with various aspects of the present teachings can, in various embodiments, be utilized to replace conventional stacked-ring ion optical elements (e.g., ion guides, ion tunnels, ion funnels, reflectrons), which typically contain a plurality of individual conductor rings and insulating spacers that must be manufactured with exacting tolerances and precisely aligned during assembly. In various aspects, methods of producing ion optical elements are also disclosed herein, which according to various aspects may reduce the cost and/or complexity associated with precisely manufacturing and assembling the many parts of conventional stacked-ring devices.[French]
