WO2025078847 - OZONE NOZZLE FOR AGRICULTURAL SPRAYING MACHINES
National phase entry is expected:
Publication Number
WO/2025/078847
Publication Date
17.04.2025
International Application No.
PCT/GR2024/000032
International Filing Date
09.10.2024
Title **
[English]
OZONE NOZZLE FOR AGRICULTURAL SPRAYING MACHINES
[French]
BUSE À OZONE POUR MACHINES DE PULVÉRISATION AGRICOLES
Applicants **
DITSOLAS, Georgios
Inventors
DITSOLAS, Georgios
Priority Data
20230100837
11.10.2023
GR
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Natural Person
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1902 | |
| EPO | Filing, Examination, Granting | 6386 | |
| Japan | Filing, Examination, Granting | 1812 | |
| South Korea | Filing, Examination, Granting | 1300 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
16,140
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

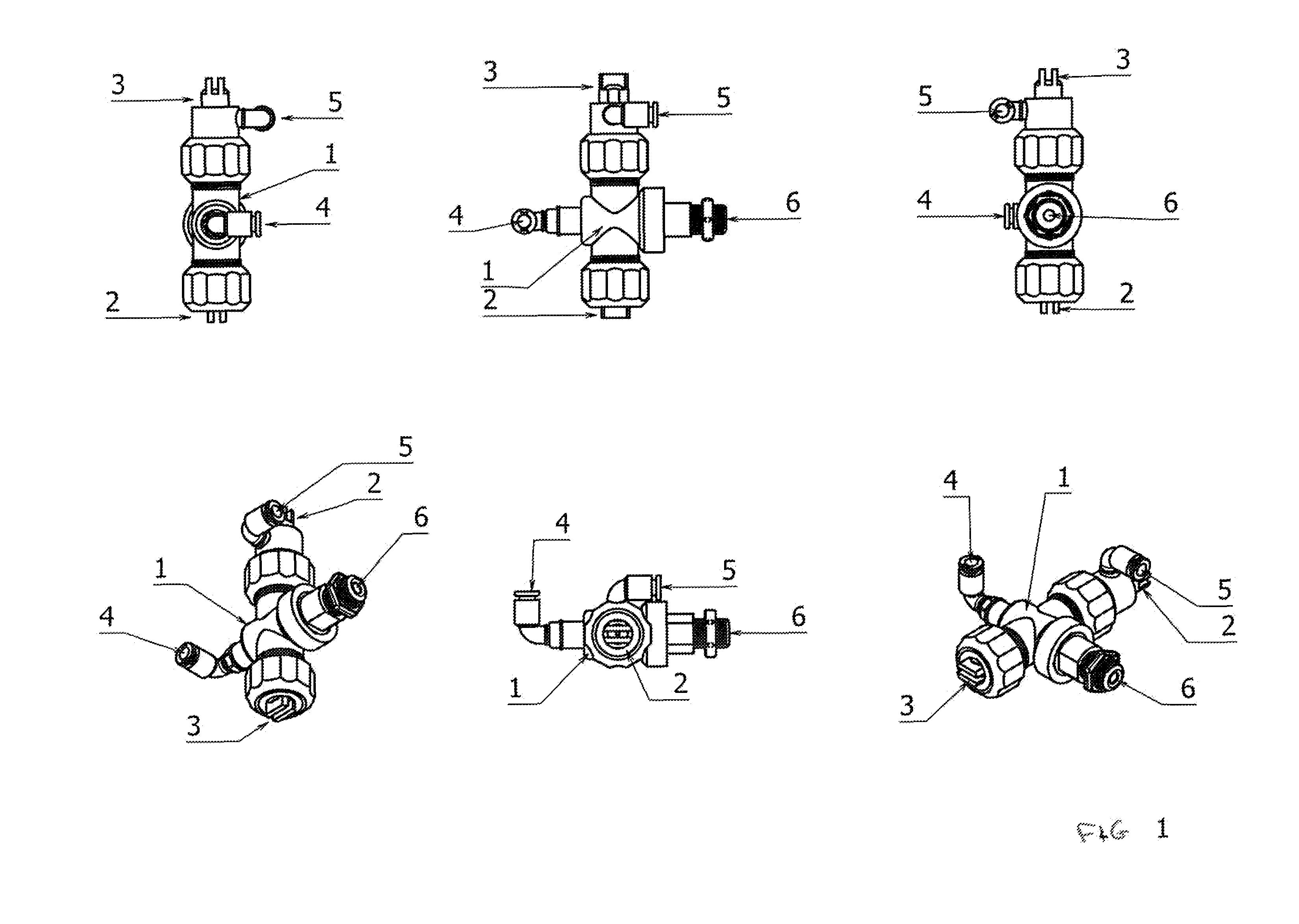

The innovation concerns an innovative ozone nozzle for spraying machines. Nozzles (injectors) are used in spraying agricultural machinery. They bring an inlet of the pressurized liquid into the chamber and then nebulize and eject it as a cloud of droplets. The innovation concerns a double nozzle having an inlet for the liquid (Drawing 1, [6]) and spray tips (Drawing 1, [2] and [3]). In its main body (Drawing 1, [1]) it has a second inlet (Drawing 1, [4]) from where compressed air is supplied which further nebulizes so that a smaller amount of spray is required. In the second spray end (Drawing 1 [3]), a fitting is inserted that adapts a second connector for ozone gas (Drawing 1 [5]), known for its antibacterial, antifungal, antimicrobial and insecticidal action, is injected. Thus the nebulizer can spray even without the addition of any pesticide or with a minimal amount if the user so desires, making the agricultural nebulizer highly environmentally friendly.[French]
L'innovation a trait à une buse d'ozone innovante pour des machines de pulvérisation. Des buses (injecteurs) sont utilisées dans la machinerie agricole de pulvérisation. Elles amènent une entrée du liquide sous pression dans la chambre puis le nébulisent et l'éjectent sous la forme d'un nuage de gouttelettes. L'innovation a trait à une double buse ayant une entrée pour le liquide (dessin 1, [6]) et des embouts de pulvérisation (dessin 1, [2] et [3]). Dans son corps principal (dessin 1, [1]), elle a une seconde entrée (dessin 1, [4]) d'où de l'air comprimé est fourni, ce qui permet de nébuliser davantage si bien qu'une plus petite quantité de pulvérisation est requise. Dans la seconde extrémité de pulvérisation (dessin 1 [3 j), un raccord est inséré lequel adapte un second connecteur pour que de l'ozone gazeux (dessin 1 [5]), connu pour son action antibactérienne, antifongique, antimicrobienne et insecticide, soit injecté. Ainsi, le nébuliseur peut pulvériser même sans ajout d'aucun pesticide ou avec une quantité minimale si l'utilisateur le souhaite, ce qui rend le nébuliseur agricole très respectueux de l'environnement.
