WO2026139347 - OPTOELECTRONIC COMPONENT HAVING OPTOELECTRONIC CELLS COMPRISING A CURRENT-CONTRIBUTING AREA AND A NON-CURRENT-CONTRIBUTING AREA
National phase entry is expected:
Publication Number
WO/2026/139347
Publication Date
02.07.2026
International Application No.
PCT/EP2025/087833
International Filing Date
17.12.2025
Title **
[English]
OPTOELECTRONIC COMPONENT HAVING OPTOELECTRONIC CELLS COMPRISING A CURRENT-CONTRIBUTING AREA AND A NON-CURRENT-CONTRIBUTING AREA
[French]
COMPOSANT OPTOÉLECTRONIQUE COMPORTANT DES CELLULES OPTOÉLECTRONIQUES COMPRENANT UNE ZONE DE CONTRIBUTION AU COURANT ET UNE ZONE DE NON-CONTRIBUTION AU COURANT
Applicants **
HELIATEK GMBH
Inventors
BERGER, Ulf
FISCHER, Simon
FRIEDRICH-SCHILLING, Niels
GREIFZU, Georg
STANEK, Bonnie
WIDMER, Johannes
Priority Data
24223356.7
27.12.2024
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2032 | |
| EPO | Filing, Examination, Granting | 8257 | |
| Japan | Filing, Examination, Granting | 2210 | |
| South Korea | Filing, Examination, Granting | 2105 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,344
Contact Us
Abstract[English]

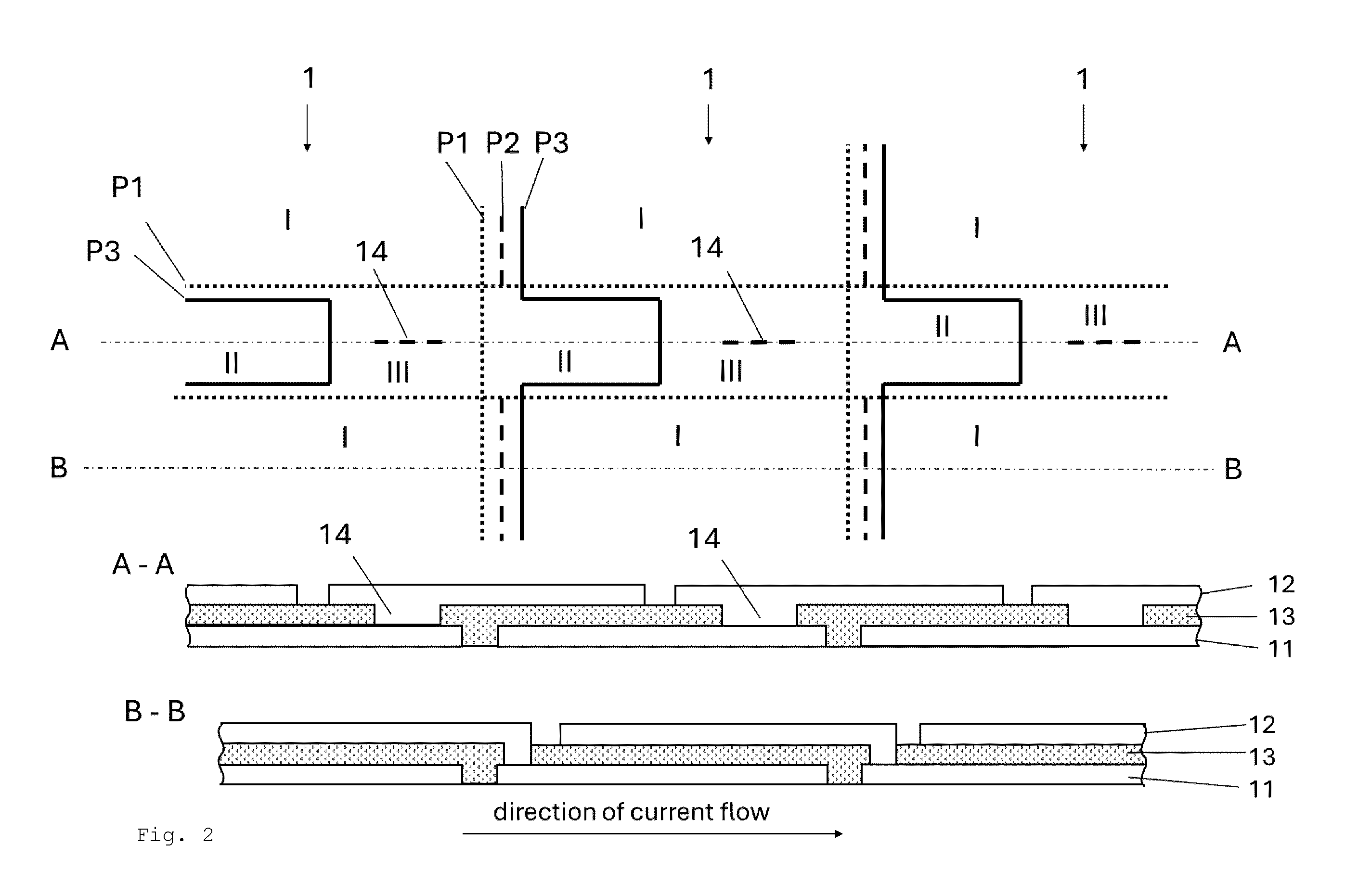

The invention relates to an optoelectronic component (100) having at least two optoelectronic cells (1) being connected in series, each optoelectronic cell (1) comprises a current-contributing area (I) and at least one non-current-contributing area (II, III), wherein the at least one non-current-contributing area (II, III) and the current-contributing area (I) of the optoelectronic cell (1) share the same stack (10), wherein the at least one non-current-contributing area (II, III) is arranged within the current-contributing area (I) and is delimited from the current-contributing area (I) by separating structures, wherein the current-contributing area (I) and the at least one non-current-contributing area (II, III) of the optoelectronic cell (1) are electrically connected antiparallel to each other, wherein the stack (10) of each optoelectronic cell (1) is structured in such a way that a base electrode (11) of the current-contributing area (I) is electrically separated from a base electrode (11) of the at least one non-current-contributing area (II, III), and the base electrode (11) of the at least one non-current-contributing area (II, III) is electrically connected to a top electrode (12) of the current-contributing area (I).[French]
