WO2026131170 - VERFAHREN ZUR HERSTELLUNG EINER KAMERA UND KAMERA FÜR EIN KRAFTFAHRZEUG

National phase entry is expected:
Publication Number WO/2026/131170
Publication Date 25.06.2026
International Application No. PCT/EP2025/085529
International Filing Date 04.12.2025
Title **
[German] VERFAHREN ZUR HERSTELLUNG EINER KAMERA UND KAMERA FÜR EIN KRAFTFAHRZEUG
[English] METHOD FOR PRODUCING A CAMERA, AND CAMERA FOR A MOTOR VEHICLE
[French] PROCÉDÉ DE PRODUCTION D'UNE CAMÉRA ET CAMÉRA POUR VÉHICULE AUTOMOBILE
Applicants **
ROBERT BOSCH GMBH
Inventors
MUELLER, Anke
HAUSCHILD, Selim
OHMAYER, Sophia
WEIN, Romy
DORFMUELLER, Jens
FRIES, Johannes
BECKER, Peter
BUCK, Lukas Theodor
LINDAUER, Maria
NAGEL, Anika
HOFMANN, Susanne
Priority Data
102024138182.5   17.12.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1886
EPO Filing, Examination, Granting8218
Japan Filing, Examination, Granting1970
South Korea Filing, Examination, Granting1583
USA Filing, Examination, Granting4740
MasterCard Visa
Total: 18,397
Contact Us

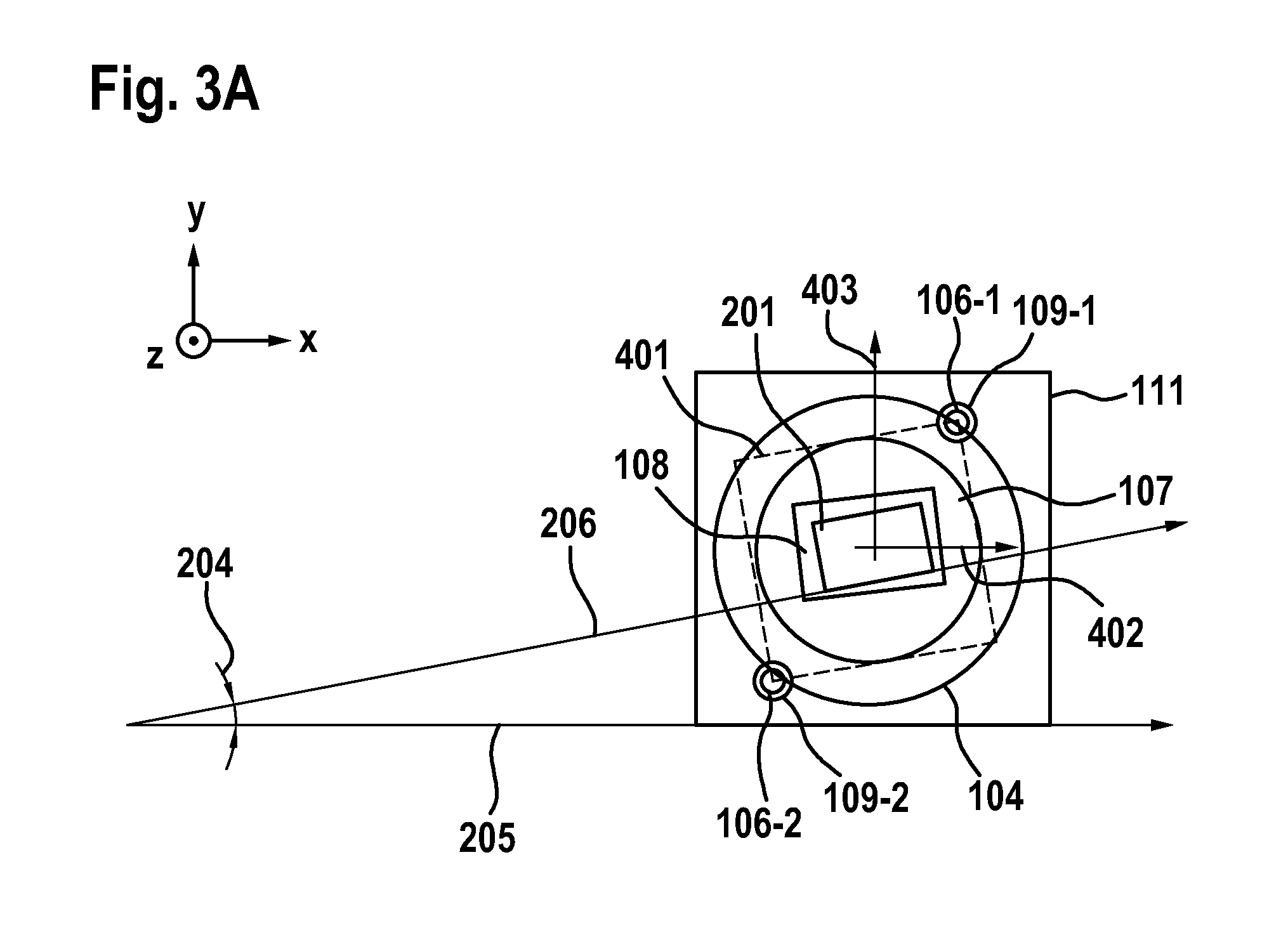

Abstract[German] Verfahren (500) zur Herstellung einer Kamera (100), wobei die Kamera (100) ein Objektiv (101) mit einem Objektivgehäuse (102) und wenigstens einer optischen Linse (103), ein Kameragehäuse (111) mit wenigstens zwei, in eine dem Objektiv (101) abgewandten Richtung ragende Pins (106-1, 106-2), und eine Leiterplatte (107) mit einem darauf befestigtem Imager-Modul (108) umfasst, wobei die Leiterplatte (107) mittels der Pins (106-1, 106-2) mit dem Kameragehäuse (111) verbunden ist; wobei das Verfahren die Schritte aufweist: Bereitstellen (501) des Kameragehäuses (111); Bereitstellen (502) der Leiterplatte (107), wobei auf der Leiterplatte (107) ein Imager-Modul (108) umfassend einen Bildsensor befestigt ist und wobei die Leiterplatte (107) wenigstens zwei, den Pins (106-1, 106-2) des Kameragehäuses (111) korrespondierende Aufnahmeöffnungen (109-1, 109-2) umfasst; Einführen (503) der Leiterplatte (107) in das Kameragehäuse (111), wobei die Leiterplatte (107) mittels eines Greifer-Systems gehalten wird und wobei die Pins (106-1, 106-2) des Kameragehäuses (111) durch die Aufnahmeöffnungen (109-1, 109-2) der Leiterplatte (107) geführt werden; Vermessung (504) einer Ausrichtung einer aktiven Fläche (201) des auf der Leiterplatte (107) befestigten Bildsensors in Bezug auf das Kameragehäuses (111) mittels eines Bilderkennungsverfahrens; Positionierung (506) der Leiterplatte (107) in Bezug auf das Kameragehäuse (111) mittels des Greifer-Systems unter Berücksichtigung der Ausrichtung der vermessenen aktiven Fläche (201); und Befestigen (507) der Leiterplatte (107) an dem Kameragehäuse (111).[English] The invention relates to a method (500) for producing a camera (100), wherein the camera (100) comprises: an objective (101) having an objective housing (102) and at least one optical lens (103); a camera housing (111) having at least two pins (106-1, 106-2) protruding in a direction away from the objective (101); and a circuit board (107) with an imager module (108) fastened thereon, wherein the circuit board (107) is connected to the camera housing (111) by means of the pins (106-1, 106-2); wherein the method comprises the steps of: providing (501) the camera housing (111); providing (502) the circuit board (107), wherein an imager module (108) comprising an image sensor is fastened on the circuit board (107), and wherein the circuit board (107) comprises at least two receiving openings (109-1, 109-2) corresponding to the pins (106-1, 106-2) of the camera housing (111); introducing (503) the circuit board (107) into the camera housing (111), wherein the circuit board (107) is held by means of a gripper system, and wherein the pins (106-1, 106-2) of the camera housing (111) are guided through the receiving openings (109-1, 109-2) of the circuit board (107); measuring (504) an orientation of an active surface (201) of the image sensor fastened on the circuit board (107) relative to the camera housing (111) by means of an image recognition method; positioning (506) the circuit board (107) relative to the camera housing (111) by means of the gripper system, taking into account the orientation of the measured active surface (201); and fastening (507) the circuit board (107) to the camera housing (111).[French] L'invention concerne un procédé (500) de production d'une caméra (100), la caméra (100) comprenant : un objectif (101) présentant un boîtier d'objectif (102) et au moins une lentille optique (103) ; un boîtier de caméra (111) présentant au moins deux broches (106-1, 106-2) faisant saillie dans un sens s'éloignant de l'objectif (101) ; et une carte de circuit imprimé (107) avec un module imageur (108) fixé sur celle-ci, la carte de circuit imprimé (107) étant connectée au boîtier de caméra (111) au moyen des broches (106-1, 106-2) ; le procédé comprenant les étapes consistant à : fournir (501) le boîtier de caméra (111) ; fournir (502) la carte de circuit imprimé (107), un module imageur (108) comprenant un capteur d'image étant fixé sur la carte de circuit imprimé (107), et la carte de circuit imprimé (107) comprenant au moins deux ouvertures de réception (109-1, 109-2) correspondant aux broches (106-1, 106-2) du boîtier de caméra (111) ; introduire (503) la carte de circuit imprimé (107) dans le boîtier de caméra (111), la carte de circuit imprimé (107) étant maintenue au moyen d'un système de préhension, et les broches (106-1, 106-2) du boîtier de caméra (111) étant guidées à travers les ouvertures de réception (109-1, 109-2) de la carte de circuit imprimé (107) ; mesurer (504) une orientation d'une surface active (201) du capteur d'image fixé sur la carte de circuit imprimé (107) par rapport au boîtier de caméra (111) au moyen d'un procédé de reconnaissance d'image ; positionner (506) la carte de circuit imprimé (107) par rapport au boîtier de caméra (111) au moyen du système de préhension, en tenant compte de l'orientation de la surface active mesurée (201) ; et fixer (507) la carte de circuit imprimé (107) au boîtier de caméra (111).
