WO2025093499 - DEVICE FOR LOCKING THE LEVER FOR OPENING AN OPENING PANEL OF A VEHICLE
National phase entry is expected:
Publication Number
WO/2025/093499
Publication Date
08.05.2025
International Application No.
PCT/EP2024/080468
International Filing Date
28.10.2024
Title **
[English]
DEVICE FOR LOCKING THE LEVER FOR OPENING AN OPENING PANEL OF A VEHICLE
[French]
DISPOSITIF DE BLOCAGE DU LEVIER D'OUVERTURE D'UN OUVRANT D'UN VÉHICULE
Applicants **
RENAULT S.A.S.
Inventors
MARME, Philippe
PELAMOURGUES, Karine
Priority Data
FR2311924
02.11.2023
FR
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1897 | |
| EPO | Filing, Examination, Granting | 8688 | |
| Japan | Filing, Examination, Granting | 2130 | |
| South Korea | Filing, Examination, Granting | 1875 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
19,330
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

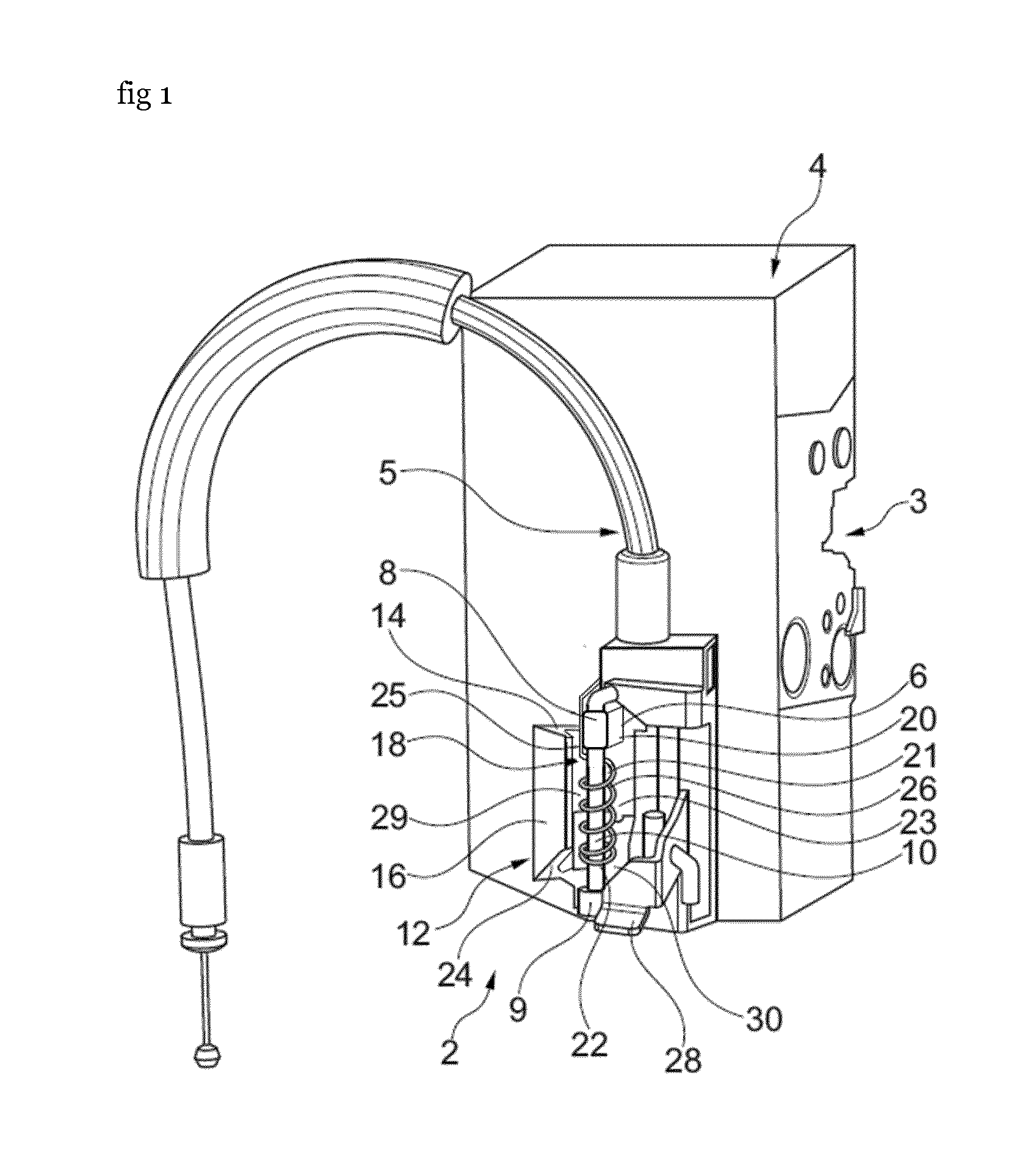

The present invention relates to a lock (4) configured to be installed in an opening panel of a vehicle, comprising at least one lever (28) for opening the opening panel and a device (2) for locking the lever (28) comprising a flyweight (12) able to adopt a first position or a second position, the first position of the flyweight (12) being configured to allow the actuation of the lever (28) while the second position of the flyweight (12) is configured to lock the actuation of the lever (28), the locking device (2) comprising a support (6) which is rigidly connected to the lock (4) and configured to receive the flyweight (12), the locking device (2) comprising a return spring (26) carried by the support (6) and configured to adopt at least two configurations, a first configuration keeping the flyweight (12) in the first position and a second configuration preventing the flyweight (12) from returning to its first position.[French]
Dispositif de blocage du levier d'ouverture d'un ouvrant d'un véhicule La présente invention concerne une serrure (4) configurée pour être installée dans un ouvrant de véhicule, comprenant au moins un levier (28) d'ouverture de l'ouvrant et un dispositif de blocage (2) du levier (28) comprenant une masselotte (12) apte à prendre une première position ou une deuxième position, la première position de la masselotte (12) étant configurée pour autoriser l'actionnement du levier (28) tandis que la deuxième position de la masselotte (12) est configurée pour bloquer l'actionnement du levier (28), le dispositif de blocage (2) comprenant un support (6) solidaire de la serrure (4) configuré pour recevoir la masselotte (12), le dispositif de blocage (2) comprenant un ressort de rappel (26) porté par le support (6) et configuré pour prendre au moins deux configurations, une première configuration maintenant la masselotte (12) dans la première position et une deuxième configuration empêchant le retour de la masselotte (12) dans sa première position.
