WO2025026994 - STATOR FÜR EINEN ELEKTROMOTOR
National phase entry is expected:
Publication Number
WO/2025/026994
Publication Date
06.02.2025
International Application No.
PCT/EP2024/071502
International Filing Date
30.07.2024
Title **
[German]
STATOR FÜR EINEN ELEKTROMOTOR
[English]
STATOR FOR AN ELECTRIC MOTOR
[French]
STATOR POUR MOTEUR ÉLECTRIQUE
Applicants **
BROSE FAHRZEUGTEILE SE & CO. KOMMANDITGESELLSCHAFT, WÜRZBURG
Inventors
SIDNALE, Amit
VOLKAMER, Alexander
Priority Data
102023207307.2
31.07.2023
DE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1887 | |
| EPO | Filing, Examination, Granting | 8249 | |
| Japan | Filing, Examination, Granting | 2055 | |
| South Korea | Filing, Examination, Granting | 1780 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,711
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[German]

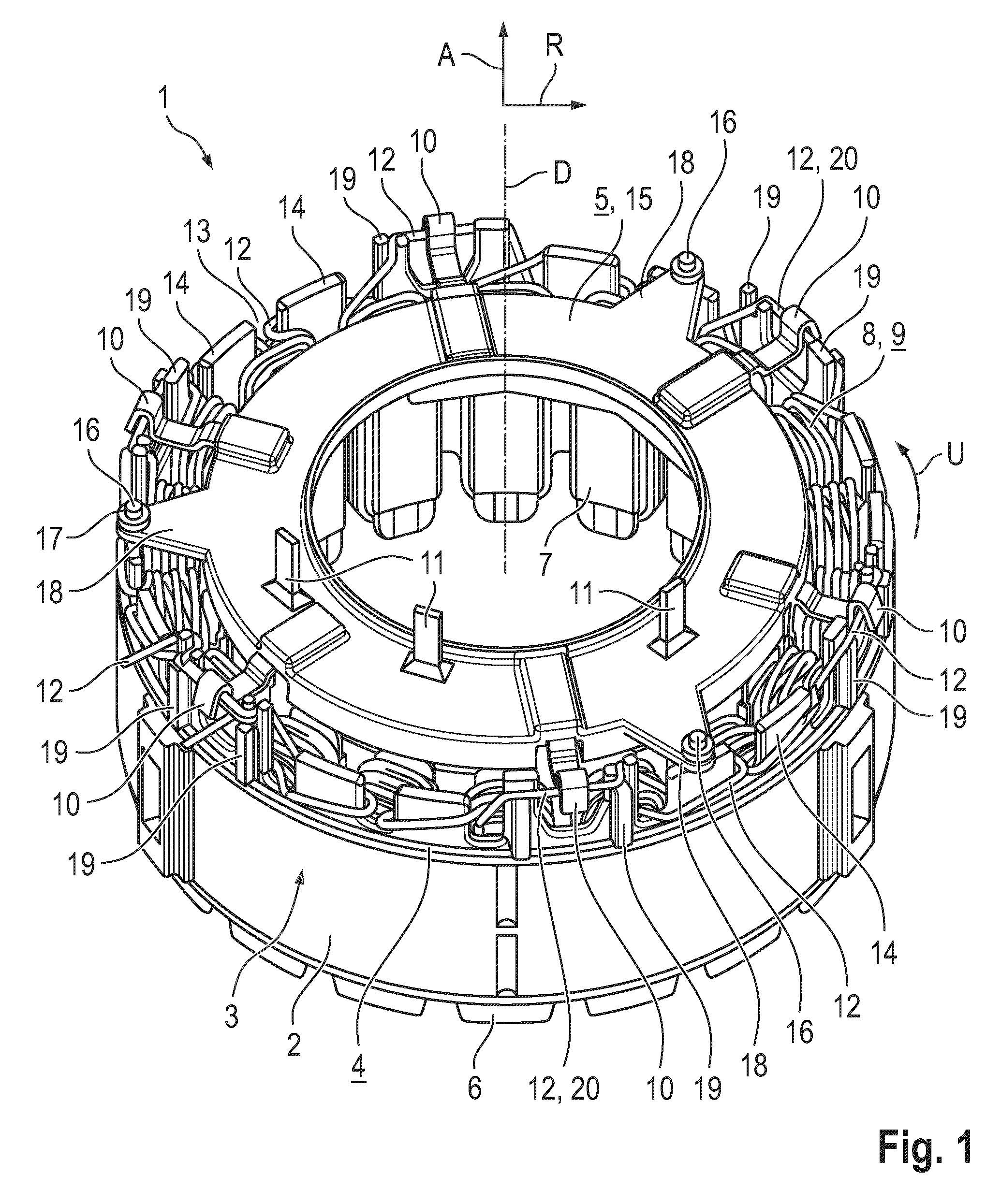

Die Erfindung betrifft einen Stator (1) für einen Elektromotor, aufweisend einen Statorgundkörper (2) mit radial einwärts gerichteten Statorzähnen (7) mit darauf angeordneter mehrphasiger Statorwicklung (9), einen an einer Stirnseite (3) des Statorgundkörpers (2) angeordneten Isolierring (4), und einen auf den Isolierring (4) aufsetzbaren oder aufgesetzten Anschlussadapter (5) mit einem Anschlussgehäuse (15) und mit Phasenanschlusskontakten (11) sowie mit Kontaktelementen (10) zur Anschlusskontaktierung von Wicklungsabschnitten (12) der Statorwicklung (9), wobei der Anschlussadapter (5) aufweist, und wobei der Isolierring (4) umfangsseitig eine Anzahl an Stemmzapfen (16) und der Anschlussadapter (5) korrespondierende Durchtrittsöffnungen (17) aufweist, die von den Stemmzapfen (16) zum Zwecke deren anschließenden Verformung durchgriffen werden.[English]
