WO2024038122 - INGESTIBLE DEVICE WITH ROTATIONAL TRIGGER RELEASE
National phase entry is expected:
Publication Number
WO/2024/038122
Publication Date
22.02.2024
International Application No.
PCT/EP2023/072631
International Filing Date
16.08.2023
Title **
[English]
INGESTIBLE DEVICE WITH ROTATIONAL TRIGGER RELEASE
[French]
DISPOSITIF INGÉRABLE À LIBÉRATION DE DÉCLENCHEMENT ROTATIVE
Applicants **
NOVO NORDISK A/S
Inventors
MARSTRAND, Anders, Hammelev
TØNNESEN, Lene, Westergaard
SIGURDARSON, Nökkvi, Steinn
WINDUM, Jesper, Peter
Priority Data
22190669.6
17.08.2022
EP
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2159 | |
| EPO | Filing, Examination, Granting | 8980 | |
| Japan | Filing, Examination, Granting | 2258 | |
| South Korea | Filing, Examination, Granting | 2203 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
20,340
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

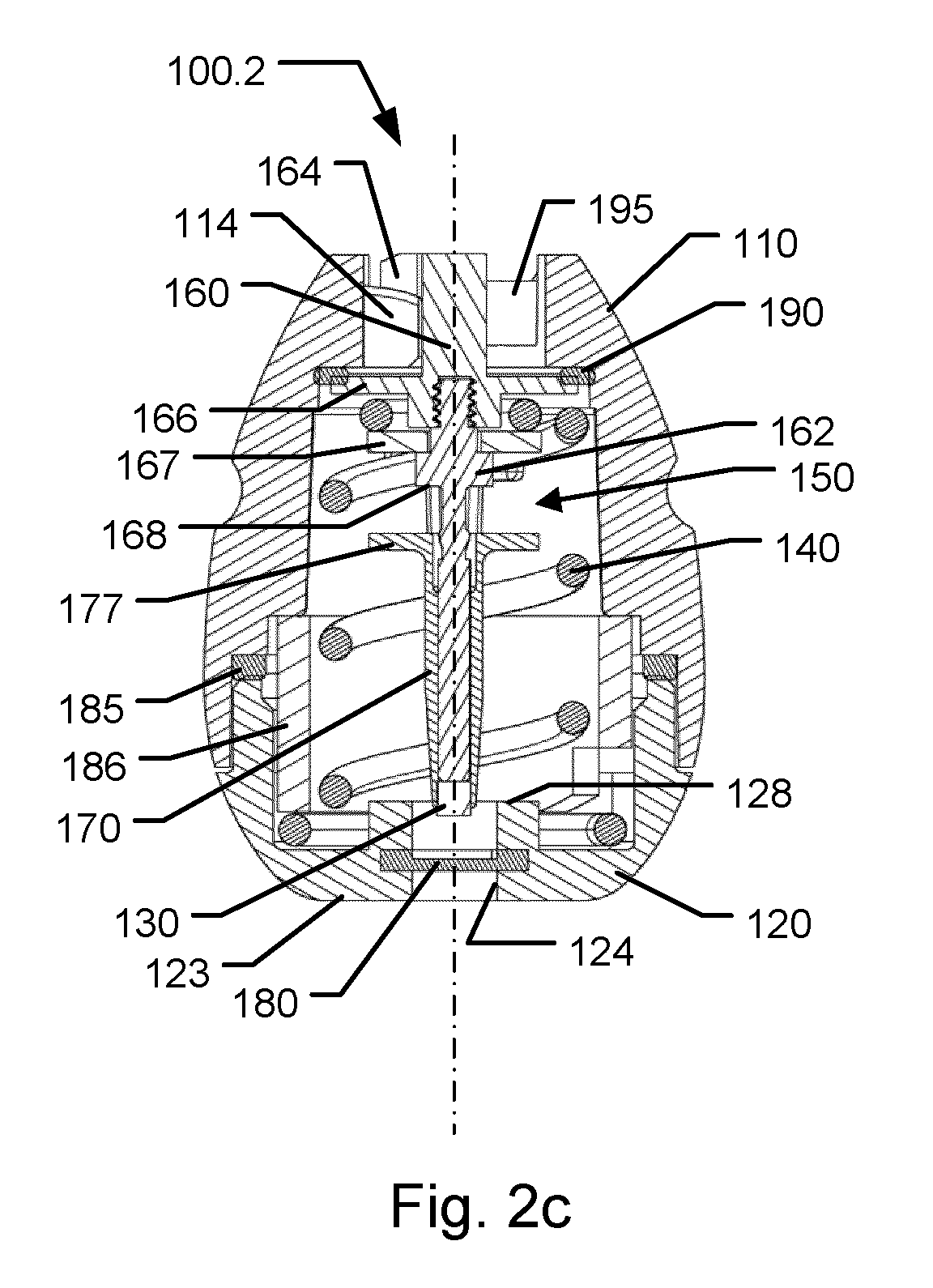

A capsule device (100.2) suitable for ingestion, comprising: a) a capsule housing (110, 120), b) a tissue penetrating member (130) held by a hub (150, 160, 162) for advancing the tissue penetrating member (130) axially from a first position to a second position, c) a strained spring (140) providing a load on the hub (150, 160, 162) for moving the hub, d) a releasable locking engagement between the hub (150, 160, 162) and the capsule housing (110, 120) that maintains the hub in the first position against the load of the spring, wherein the locking engagement is configured as a rotational lock wherein relative rotational unlocking movement around the axis between a hub lock geometry (161, 164) and a housing lock geometry (111, 114) releases the locking engagement, and e) a trigger arrangement including a trigger element (195) configured for changing shape from a first shape to a second shape in response to subjection to gastric fluid to cause the relative rotational unlocking movement.[French]
Dispositif de capsule (100.2) approprié pour l'ingestion, comprenant : a) un boîtier de capsule (110, 120), b) un élément de pénétration de tissu (130) maintenu par une embase (150, 160, 162) pour faire avancer l'élément de pénétration de tissu (130) axialement d'une première position à une seconde position, c) un ressort contraint (140) fournissant une charge sur l'embase (150, 160, 162) pour déplacer l'embase, d) un engagement de verrouillage libérable entre l'embase (150, 160, 162) et le boîtier de capsule (110, 120) qui maintient l'embase dans la première position contre la charge du ressort, l'engagement de verrouillage étant configuré sous la forme d'un verrou rotatif, l'engagement de verrouillage étant configuré comme un verrou rotatif avec un mouvement de déverrouillage rotatif relatif autour de l'axe entre une géométrie de verrouillage d'embase (161, 164) et une géométrie de verrouillage de boîtier (111, 114) libère l'engagement de verrouillage, et e) un agencement de déclenchement comprenant un élément de déclenchement (195) configuré pour changer de forme d'une première forme à une seconde forme en réponse à une soumission au fluide gastrique pour provoquer le mouvement de déverrouillage rotatif relatif.
