WO2023166047 - TENSION ARRANGEMENT FOR A DOOR OPERATOR SYSTEM
National phase entry:
Publication Number
WO/2023/166047
Publication Date
07.09.2023
International Application No.
PCT/EP2023/055162
International Filing Date
01.03.2023
Title **
[English]
TENSION ARRANGEMENT FOR A DOOR OPERATOR SYSTEM
[French]
AGENCEMENT DE TENSION POUR SYSTÈME D'ACTIONNEMENT DE PORTE
Applicants **
ASSA ABLOY ENTRANCE SYSTEMS AB
Inventors
ELIASSON, Daniel
RAJIC, Ivan
LÖFGREN, Anders
HANSSON, Anton
SJÖBERG, Johanns
BÄCKLUND, Linus
Priority Data
2230058-6
01.03.2022
SE
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2203 | |
| EPO | Filing, Examination, Granting | 9755 | |
| Japan | Filing, Examination, Granting | 2294 | |
| South Korea | Filing, Examination, Granting | 2375 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
21,367
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

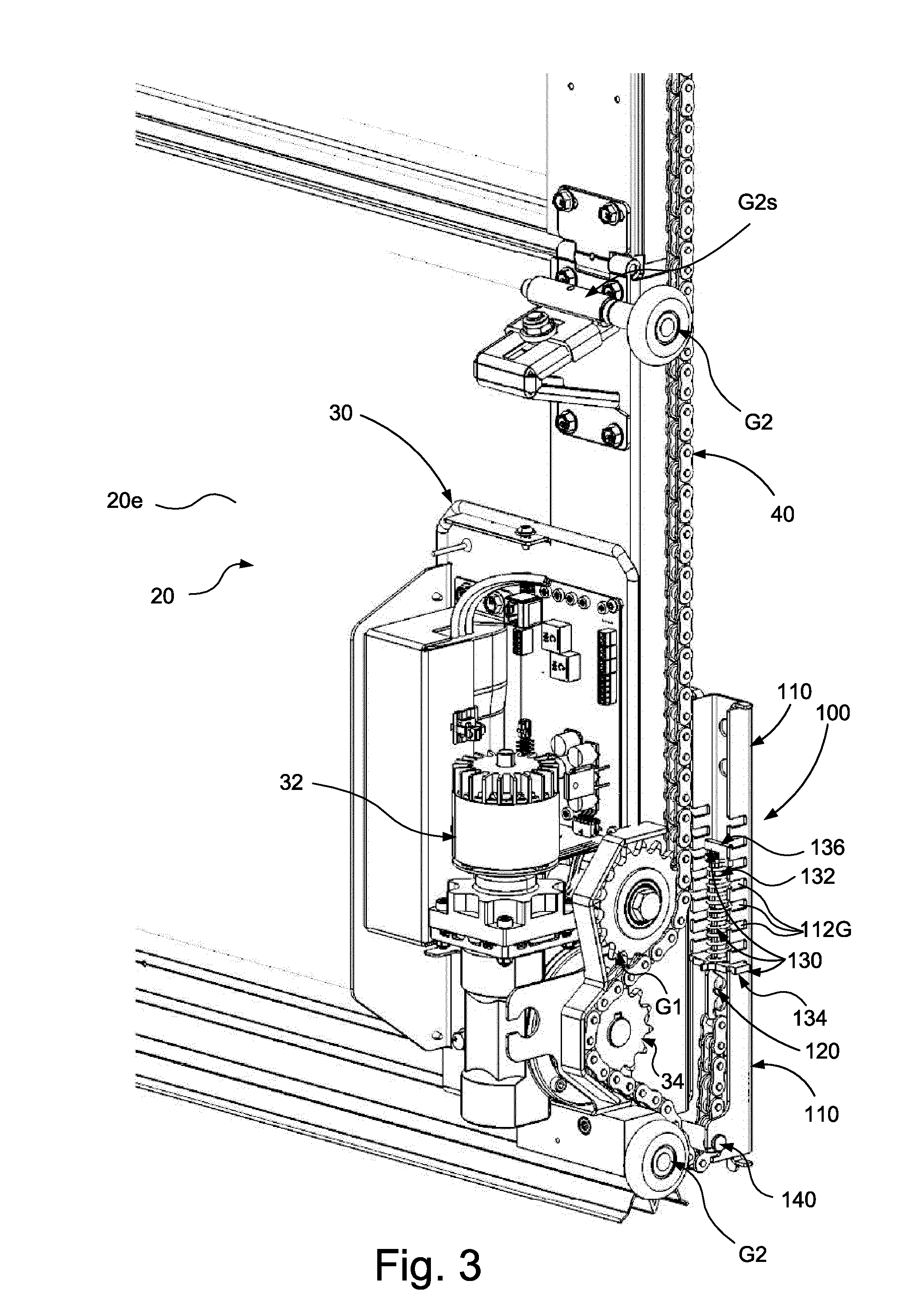

Tension arrangement (100) for a door operator system (S) for opening and closing an opening (O). Said door operator system (S) comprises a door (20) and a drive unit mounted on said door (20) and arranged to move the door (20) between an open and closed position. The door operator system comprises an elongated transmission member (40) extending along a side of the opening (O), wherein a driven transmission member (34) of said drive unit (30) is arranged to interplay with said first elongated transmission member (40) so as to move the door (20) between the closed and open position. Said tension arrangement (100) comprises a bracket member (110) for facilitating attachment of said tension arrangement (100); a tension device (T) comprising a connection member (120) for connecting said first elongated transmission member (40) and a spring arrangement (130) comprising a spring member (132). Said spring arrangement (130) is configured to be connected to said connection member (120) so as to facilitate adapting the spring load of said spring member (132). Said tension device (T) is configured to be arranged in connection to said bracket member (110) so that tension of said first elongated transmission member (40) is facilitated. The present invention also relates to a door operator system.[French]
L'invention concerne un agencement de tension (100) pour un système d'actionnement de porte (S) destiné à ouvrir et fermer une ouverture (O). Ledit système d'actionnement de porte (S) comprend une porte (20) et une unité d'entraînement montée sur ladite porte (20) et agencée pour déplacer la porte (20) entre une position ouverte et une position fermée. Le système d'actionnement de porte comprend un élément de transmission allongé (40) s'étendant le long d'un côté de l'ouverture (O), un élément de transmission entraîné (34) de ladite unité d'entraînement (30) étant agencé pour interagir avec ledit premier élément de transmission allongé (40) de façon à déplacer la porte (20) entre la position fermée et la position ouverte. Ledit agencement de tension (100) comprend un élément de support (110) pour faciliter la fixation dudit agencement de tension (100) ; un dispositif de tension (T) comprenant un élément de liaison (120) pour relier ledit premier élément de transmission allongé (40) et un agencement de ressort (130) comprenant un élément ressort (132). Ledit agencement de ressort (130) est conçu pour être relié audit élément de liaison (120) de façon à faciliter l'adaptation de la charge de ressort dudit élément ressort (132). Ledit dispositif de tension (T) est conçu pour être agencé en liaison avec ledit élément de support (110) de telle sorte que la tension dudit premier élément de transmission allongé (40) est facilitée. La présente invention concerne également un système d'actionnement de porte.
