WO2025093094 - WIND TURBINE ICE PROTECTION
National phase entry is expected:
Publication Number
WO/2025/093094
Publication Date
08.05.2025
International Application No.
PCT/DK2024/050265
International Filing Date
01.11.2024
Title **
[English]
WIND TURBINE ICE PROTECTION
[French]
PROTECTION CONTRE LA GLACE POUR ÉOLIENNE
Applicants **
VESTAS WIND SYSTEMS A/S
Inventors
NIELSEN, Thomas S. Bjertrup
FYNBO, Peter
BUGGY, Stephen Jude
ARIYUR, Mohamed Hashim
Priority Data
PA202330306
01.11.2023
DK
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2130 | |
| EPO | Filing, Examination, Granting | 9011 | |
| Japan | Filing, Examination, Granting | 2245 | |
| South Korea | Filing, Examination, Granting | 2168 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
20,294
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

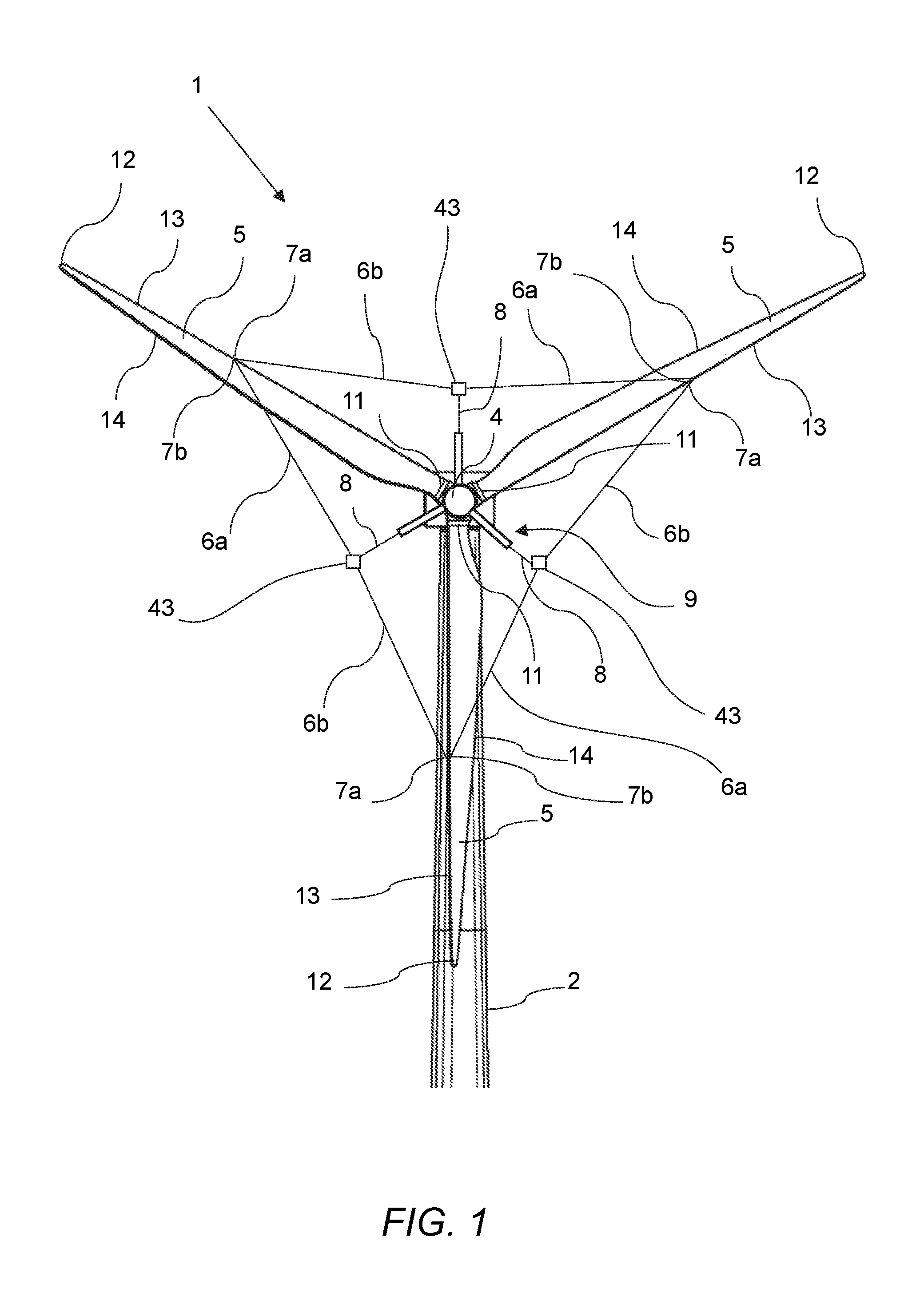

A pitch controlled wind turbine has a tower, a nacelle mounted on the tower, a hub mounted rotatably on the nacelle, and at least three blades. The wind turbine includes at least three blade connecting members, each blade connecting member extending between neighbouring wind turbine blades. The wind turbine has at least three pretension members, each being connected to one of the blade connecting members and to the hub via a tensioning device, the tensioning device provides radial movement of a radially inward end of the pre-tension member with respect to an axis of rotation of the hub due to extension/retraction of the tensioning device, each pre-tension member thereby providing pre-tension in the blade connecting member to which it is connected. An anti-icing system and/or a de-icing system is provided for protecting one or more of the blade connecting members, the pre-tension members, the connection points, or the tensioning devices.[French]
L'invention concerne une éolienne à pas variable qui comprend un mât, une nacelle montée sur le mât, un moyeu monté rotatif sur la nacelle, et au moins trois pales. L'éolienne comprend au moins trois éléments de liaison de pale dont chacun s'étend entre des pales d'éolienne voisines. L'éolienne comprend également au moins trois éléments de pré-tension dont chacun est relié à l'un des éléments de liaison de pale et au moyeu par l'intermédiaire d'un dispositif de mise en tension. Ledit dispositif de mise en tension donne un mouvement radial à une extrémité située radialement vers l'intérieur de l'élément de pré-tension par rapport à l'axe de rotation du moyeu en raison de l'extension ou de la rétraction du dispositif de mise en tension. Chaque élément de pré-tension applique ainsi une pré-tension à l'élément de liaison de pale auquel il est relié. Un système anti-givrage et/ou un système de dégivrage sont utilisés pour protéger un ou plusieurs des éléments de liaison de pale, des éléments de pré-tension, des points de liaison ou des dispositifs de mise en tension.
