WO2026139112 - PHOTOVOLTAISCHES MODUL MIT EINER ELEKTRISCH LEITFÄHIGEN RÜCKSEITENBARRIERE ALS BYPASS ZWISCHEN ZWEI ANSCHLUSSDOSEN

National phase entry is expected:
Publication Number WO/2026/139112
Publication Date 02.07.2026
International Application No. PCT/DE2025/101202
International Filing Date 17.12.2025
Title **
[German] PHOTOVOLTAISCHES MODUL MIT EINER ELEKTRISCH LEITFÄHIGEN RÜCKSEITENBARRIERE ALS BYPASS ZWISCHEN ZWEI ANSCHLUSSDOSEN
[English] PHOTOVOLTAIC MODULE HAVING AN ELECTRICALLY CONDUCTIVE REAR-SIDE BARRIER AS A BYPASS BETWEEN TWO JUNCTION BOXES
[French] MODULE PHOTOVOLTAÏQUE COMPORTANT UNE BARRIÈRE CÔTÉ ARRIÈRE ÉLECTRIQUEMENT CONDUCTRICE EN TANT QUE DÉRIVATION ENTRE DEUX BOÎTES DE JONCTION
Applicants **
HELIATEK GMBH
Inventors
WISINGER, Christian
KULSHRESTHA, Kanishk
Priority Data
102024139844.2   28.12.2024   DE
Application details
Total Number of Claims/PCT *
Number of Independent Claims *
Number of Priorities *
Number of Multi-Dependent Claims *
Number of Drawings *
Pages for Publication *
Number of Pages with Drawings *
Pages of Specification *
*
Number of Office Actions *
*
International Searching Authority
*
Recordal of a Change of the Applicant's Name/Address
*
Type of Assignment
*
Applicant's Legal Status
*
*
*
*
*
*
Entry into National Phase under
*
Patent Delivery
*
Translation

* The data is based on automatic recognition. Please verify and amend if necessary.

** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.

Quotation for National Phase entry

Country StagesTotal
China Filing, Examination, Granting1925
EPO Filing, Examination, Granting8348
Japan Filing, Examination, Granting2051
South Korea Filing, Examination, Granting1782
USA Filing, Examination, Granting4740
MasterCard Visa
Total: 18,846
Contact Us

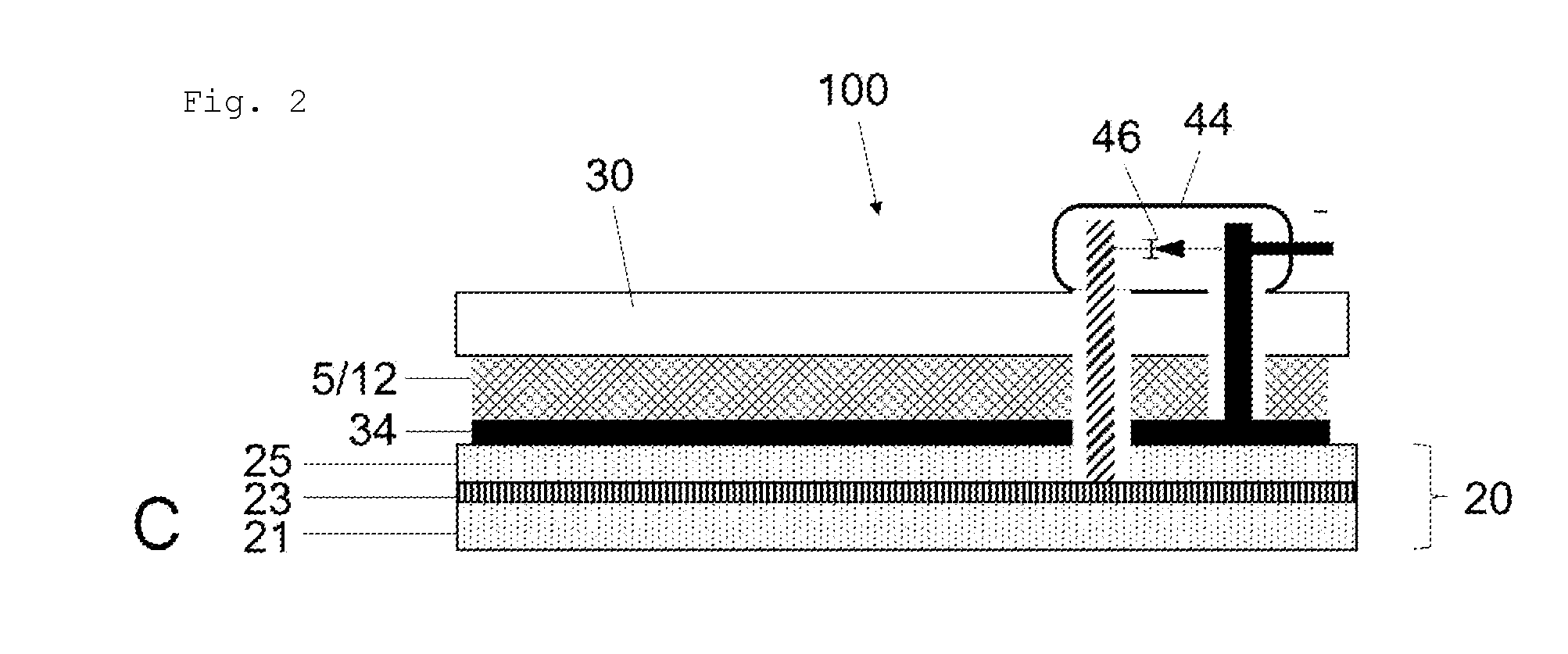

Abstract[German] Die Erfindung betrifft ein photovoltaisches Modul (100) mit photovoltaischen Zellen (10), wobei die photovoltaischen Zellen (10) miteinander in Reihe geschaltet sind, mit einer auf der Rückseite des photovoltaischen Moduls (100) angeordneten Rückseitenbarriere (20) aufweisend eine elektrisch leitfähige Schicht (23), mit einer ersten Sammelschiene (32) und einer zweiten Sammelschiene (34), wobei die erste Sammelschiene (32) mit einer ersten einpoligen Anschlussdose (42) und die zweite Sammelschiene (34) mit einer zweiten einpoligen Anschlussdose (44) über eine Bypass-Diode (46) elektrisch leitfähig kontaktiert ist, und wobei die elektrisch leitfähige Schicht (23) einen elektrisch leitfähigen Bypass zwischen der ersten einpoligen Anschlussdose (42) und der zweiten einpoligen Anschlussdose (44) bildet.[English] The invention relates to a photovoltaic module (100) having photovoltaic cells (10), wherein the photovoltaic cells (10) are connected in series with one another, having a rear-side barrier (20) which is arranged on the rear side of the photovoltaic module (100) and has an electrically conductive layer (23), having a first busbar (32) and a second busbar (34), wherein the first busbar (32) is electrically conductively contacted with a first single-pole junction box (42) and the second busbar (34) is electrically conductively contacted with a second single-pole junction box (44) via a bypass diode (46), and wherein the electrically conductive layer (23) forms an electrically conductive bypass between the first single-pole junction box (42) and the second single-pole junction box (44).[French] L'invention concerne un module photovoltaïque (100) comportant des cellules photovoltaïques (10), les cellules photovoltaïques (10) étant connectées en série les unes aux autres, comportant une barrière côté arrière (20) qui est disposée sur le côté arrière du module photovoltaïque (100) et comportant une couche électriquement conductrice (23), comportant une première barre omnibus (32) et une deuxième barre omnibus (34), la première barre omnibus (32) étant mise en contact de manière électriquement conductrice avec une première boîte de jonction unipolaire (42) et la seconde barre omnibus (34) étant mise en contact de manière électriquement conductrice avec une seconde boîte de jonction unipolaire (44) par l'intermédiaire d'une diode de dérivation (46), et la couche électriquement conductrice (23) formant une dérivation électriquement conductrice entre la première boîte de jonction unipolaire (42) et la seconde boîte de jonction unipolaire (44).
