WO2023109986 - A CLIP GROUP PROVIDED BETWEEN BRACKET AND HEAD-UP-DISPLAY
National phase entry is expected:
Publication Number
WO/2023/109986
Publication Date
22.06.2023
International Application No.
PCT/CZ2022/000051
International Filing Date
12.12.2022
Title **
[English]
A CLIP GROUP PROVIDED BETWEEN BRACKET AND HEAD-UP-DISPLAY
[French]
GROUPE DE PINCES DISPOSÉ ENTRE UN SUPPORT ET UN AFFICHAGE TÊTE HAUTE
Applicants **
ŠKODA AUTO A.S.
Inventors
BAYERL, Jindřich
Priority Data
PV2021-566
14.12.2021
CZ
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
EPO
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1902 | |
| EPO | Filing, Examination, Granting | 8387 | |
| Japan | Filing, Examination, Granting | 2068 | |
| South Korea | Filing, Examination, Granting | 1876 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
18,973
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

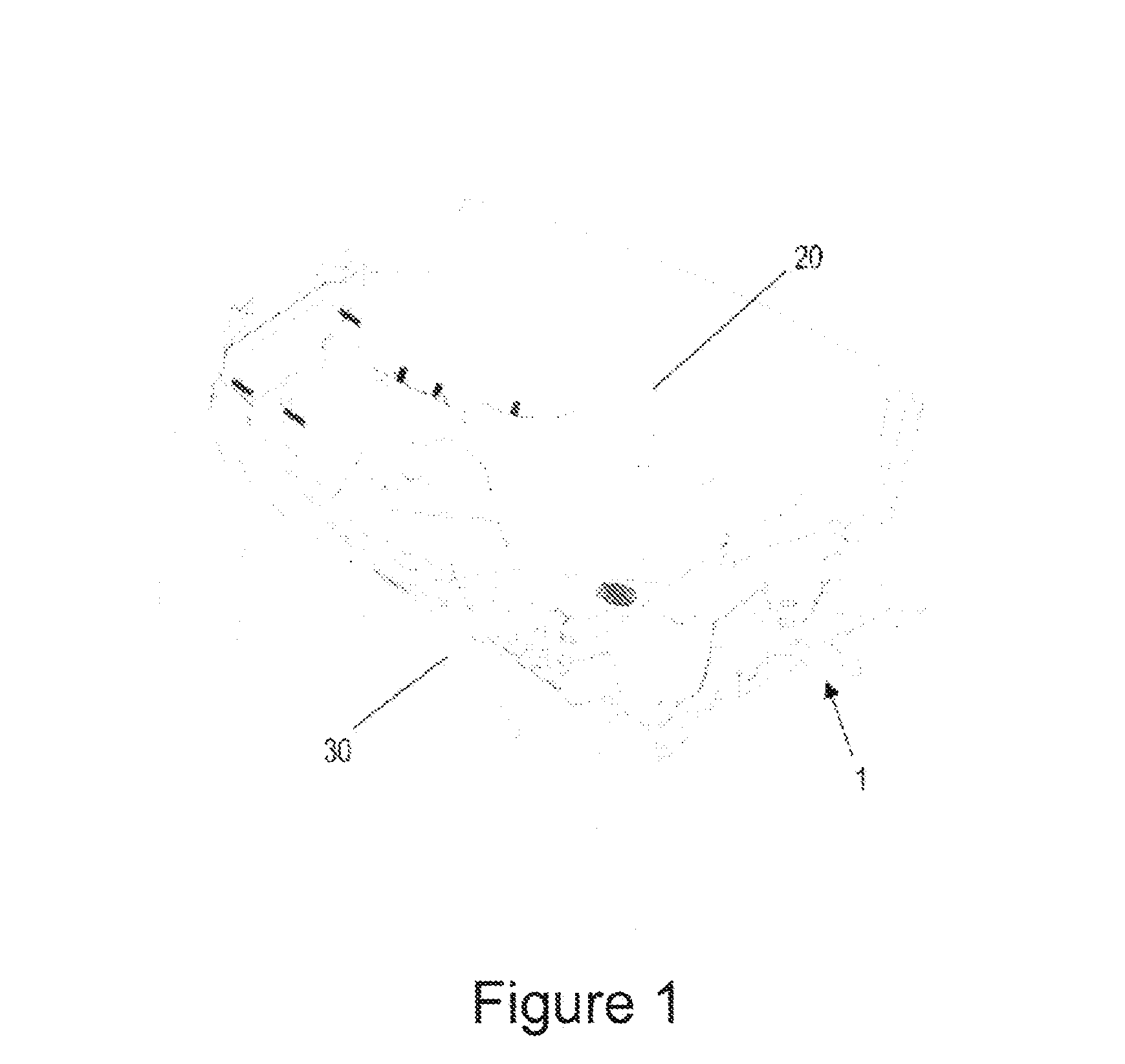

The present invention relates to at least one clip group (1) for assembling at least one headup-display (20) onto at least one bracket (30). The improvement of the present invention is that in order to enable assembly of at least one first bracket (30a) and at least one second bracket (30b) used in vehicles which are right-hand drive and left-hand drive; the subject matter clip group (1) comprises at least one first clip (10a) for realizing centering and/or tightening in at least one first connection region (31a) provided on said first bracket (30a) and on said second bracket (30b), at least one second clip (10b) for realizing centering and/or tightening in at least one second connection region (31b), and at least one third clip (10c) for realizing centering and/or tightening in at least one third connection region (31c).[French]
La présente invention concerne au moins un groupe de pinces (1) pour assembler au moins un affichage tête haute (20) sur au moins un support (30). L'amélioration de la présente invention est celle pour permettre l'assemblage d'au moins un premier support (30a) et au moins un second support (30b) utilisés dans des véhicules qui sont un entraînement à droite et un entraînement à gauche; le groupe de pinces à objet (1) comprend au moins une première pince (10a) pour réaliser un centrage et/ou un serrage dans au moins une première zone de liaison (31a) disposée sur ledit premier support (30a) et sur ledit second support (30b), au moins une deuxième pince (10b) pour réaliser un centrage et/ou un serrage dans au moins une deuxième zone de liaison (31b), et au moins une troisième pince (10c) pour réaliser un centrage et/ou un serrage dans au moins une troisième zone de liaison (31c).
