WO2023123488 - MICRO LED STRUCTURE AND MICRO LED PROJECTOR
National phase entry is expected:
Publication Number
WO/2023/123488
Publication Date
06.07.2023
International Application No.
PCT/CN2021/143992
International Filing Date
31.12.2021
Title **
[English]
MICRO LED STRUCTURE AND MICRO LED PROJECTOR
[French]
STRUCTURE DE MICRO-DEL ET PROJECTEUR À MICRO-DEL
Applicants **
JADE BIRD DISPLAY (SHANGHAI) COMPANY
Inventors
GUO, Jian
XU, Huiwen
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 2407 | |
| EPO | Filing, Examination, Granting | 20342 | |
| Japan | Filing, Examination, Granting | 2788 | |
| South Korea | Filing, Examination, Granting | 3218 | |
| USA | Filing, Examination, Granting | 6740 |
Total:
35,495
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

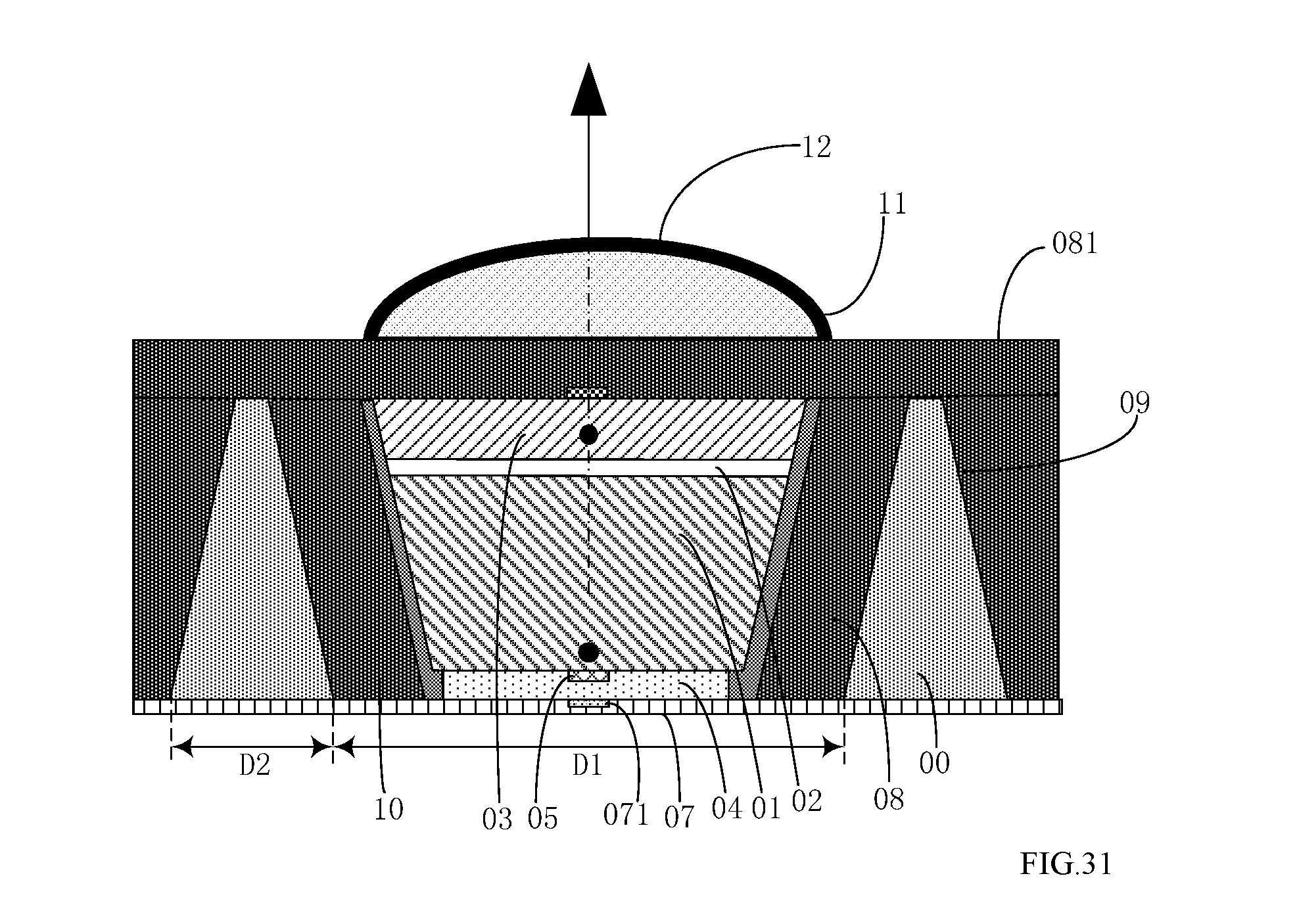

Disclosed herein are a micro LED structure and a micro LED projector. The micro LED structure comprises a micro mesa structure and a micro lens formed above the micro mesa structure. The top surface area of the micro mesa structure is larger than the bottom surface area of the micro mesa structure. The distance between the focal point of the micro lens and the top of the micro mesa structure is not more than 100%of the height of the micro mesa structure. The present disclosure increases the light emitting efficiency, control the chief ray angle of the micro LED structure and reduce the loss of the light emitting from the sidewall of the mesa structure.[French]
