WO2023123161 - IMAGING SYSTEMS WITH IMAGE SENSORS FOR SIDE RADIATION INCIDENCE DURING IMAGING
National phase entry:
Publication Number
WO/2023/123161
Publication Date
06.07.2023
International Application No.
PCT/CN2021/142884
International Filing Date
30.12.2021
Title **
[English]
IMAGING SYSTEMS WITH IMAGE SENSORS FOR SIDE RADIATION INCIDENCE DURING IMAGING
[French]
SYSTÈMES D'IMAGERIE AVEC CAPTEURS D'IMAGE POUR INCIDENCE DE RAYONNEMENT LATÉRAL PENDANT L'IMAGERIE
Applicants **
SHENZHEN XPECTVISION TECHNOLOGY CO., LTD.
Inventors
CAO, Peiyan
LIU, Yurun
Application details
| Total Number of Claims/PCT | * |
| Number of Independent Claims | * |
| Number of Priorities | * |
| Number of Multi-Dependent Claims | * |
| Number of Drawings | * |
| Pages for Publication | * |
| Number of Pages with Drawings | * |
| Pages of Specification | * |
| * | |
| Number of Office Actions | * |
| * | |
International Searching Authority |
CNIPA
* |
| Recordal of a Change of the Applicant's Name/Address |
Change of Applicant's Name and Address
* |
| Type of Assignment |
The Standard Agent's Assignment
* |
| Applicant's Legal Status |
Legal Entity
* |
| * | |
| * | |
| * | |
| * | |
| * | |
| Entry into National Phase under |
Chapter I
* |
| Patent Delivery |
Send the Letters Patent by Courier
* |
| Translation |
|
* The data is based on automatic recognition. Please verify and amend if necessary.
** IP-Coster compiles data from publicly available sources. If this data includes your personal information, you can contact us to request its removal.
Quotation for National Phase entry
| Country | Stages | Total | |
|---|---|---|---|
| China | Filing, Examination, Granting | 1812 | |
| EPO | Filing, Examination, Granting | 13497 | |
| Japan | Filing, Examination, Granting | 2386 | |
| South Korea | Filing, Examination, Granting | 2501 | |
| USA | Filing, Examination, Granting | 4740 |
Total:
24,936
The term for entry into the National Phase has expired. This quotation is for informational purposes only
Contact Us
Abstract[English]

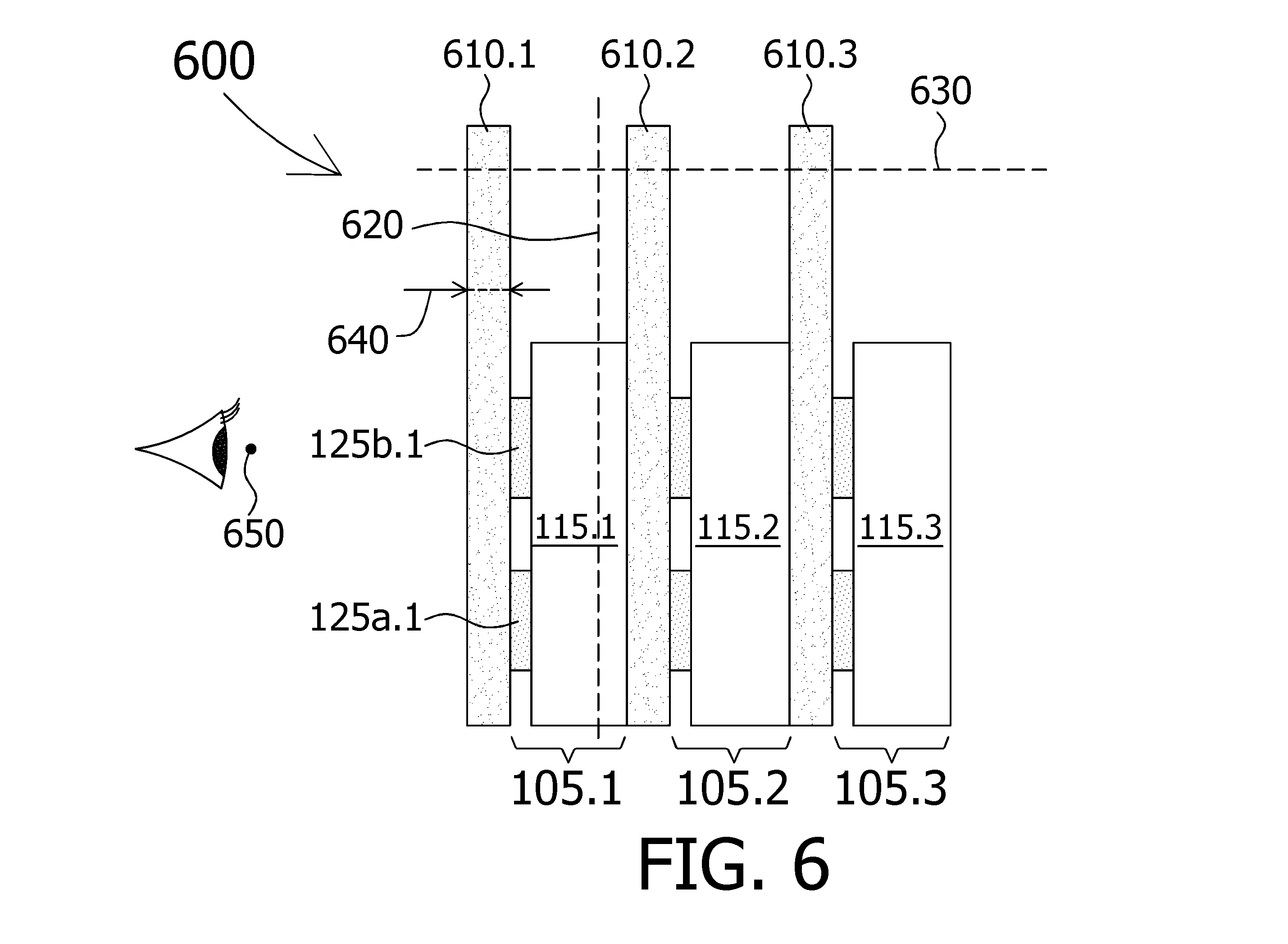

Disclosed herein is a system comprising an image sensor (600) which comprises: M metal layers (metal layers (i), i=1,..., M) (610) and M radiation detectors (radiation detectors (i), i=1,..., M) (105). For each value of i, the radiation detector (i) (105) comprises (A) a radiation absorption layer (i) (115) which comprises multiple sensing elements (150), and (B) Ni integrated circuit chips (125) configured to process electrical signals generated in the radiation absorption layer (i) (115). M is an integer greater than 1. Ni, i=1,..., M are positive integers. The M metal layers (610) and the radiation absorption layers (i) (115), i=1,..., M together form a stack of layers.[French]
